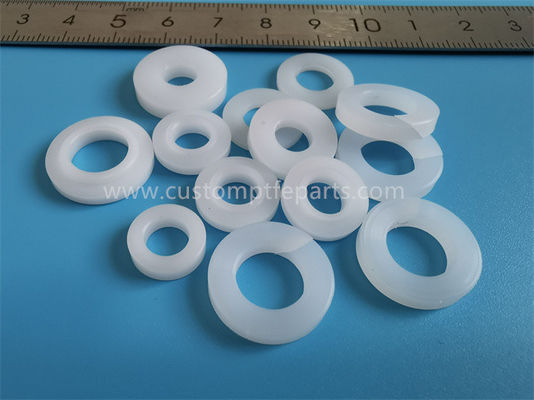

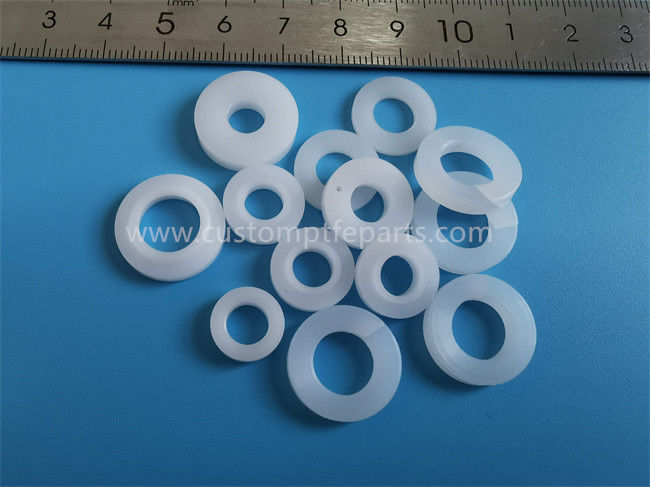

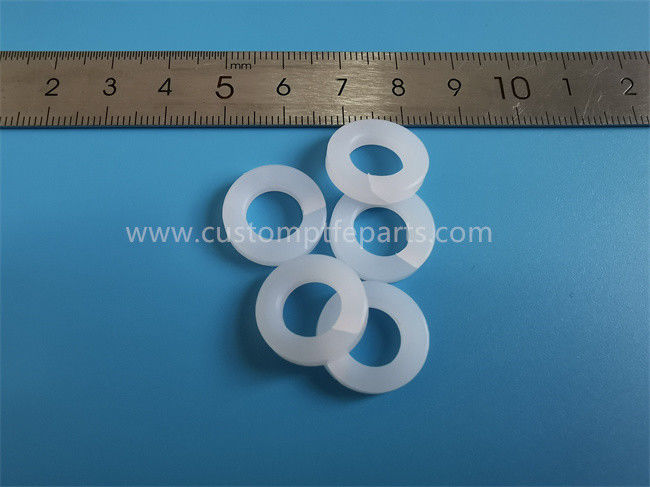

White Nylon Machined Parts , Flat Nylon Washer PA66 PA6

White Nylon Machined Parts , Flat Nylon Washer PA66 PA6

  • High Light

    White Nylon Machined Parts

    ,

    RoHS Nylon Machined Parts

    ,

    5mm Flat Nylon Washer

  • Material
    Nylon
  • Color
    White/black
  • Application
    Rings Bushings Bearing Sleeves
  • Certificate
    ISO 9001,RoHS,REACH,UL
  • Supply Type
    OEM Service
  • Feature
    Sample, Small Order, Higher Cost Performance
  • Shipping
    Support Express -Sea Freight
  • Place Of Origin
    Kunshan, China
  • Place of Origin
    China
  • Brand Name
    DeHao
  • Certification
    ISO 9001
  • Model Number
    Nylon Parts
  • Minimum Order Quantity
    2000 Piece
  • Packaging Details
    PE bag in Cartons
  • Delivery Time
    10 working days
  • Payment Terms
    L/C, T/T

White Nylon Machined Parts , Flat Nylon Washer PA66 PA6

Nylon seal ring oil seal washer PA66 PA6 PA66GF30 MC nylon pulley bushing tube nylon plastic gear wheel screw



Main properties:
Nylon® 6/6 - Extruded, Unfilled Features:

  • High tensile strength and modulus of elasticity
  • High impact resistance, a high heat distortion temperature
  • Resists wear, abrasion, and vibration
  • Can withstand contact with chemicals, alkalies, dilute acids or oxidizing agents.
  • Available Types: 6/6 (extruded), 6 (cast)
  • Available in Natural, Black, MD, Glass-Filled, Oil-Filled & various other compounds.
  • Nylon® is NOT moisture Resistant.



The exceptional bearing and wear properties of Nylon® make it one of the most widely used plastics in the world. Nylon® is frequently used as a replacement for bronze, brass, aluminum, steel and other metals, as well as other plastics, wood, and rubber. Nylon including PA6 PA6/6 PA46 Cast nylon



Applications:

  • Bearings
  • Bushings
  • Wear plates
  • Engine components
  • Gears
  • Nuts and bolts
  • Screws and hinges
Physical Properties Metric English Comments
Density 1.15 g/cc 0.0415 lb/in³ ASTM D792
Water Absorption 0.3 % 0.3 % 24 hour immersion; ASTM D570
Moisture Absorption at Equilibrium 0.9 % 0.9 % Water Vapor Regained
Water Absorption at Saturation 7 % 7 % Immersion; ASTM D570
Outgassing - Total Mass Loss 2.4 % 2.4 %
Collected Volatile Condensable Material 0 % 0 %

Mechanical Properties
Hardness, Rockwell M 85 85 ASTM D785
Hardness, Rockwell R 115 115 ASTM D785
Hardness, Shore D 80 80 ASTM D2240
Tensile Strength, Ultimate 79.3 MPa 11500 psi ASTM D638
Elongation at Break 50 % 50 % ASTM D638
Tensile Modulus 2.93 GPa 425 ksi ASTM D638
Flexural Modulus 3.1 GPa 450 ksi ASTM D790
Flexural Yield Strength 103 MPa 15000 psi ASTM D790
Compressive Yield Strength 86.2 MPa 12500 psi 10% Deflection; ASTM D695
Compressive Modulus 2.9 GPa 420 ksi ASTM D695
Machinability 10 % 10 % QEPP 10 to 100 scale
Shear Strength 68.9 MPa 10000 psi ASTM D732
Coefficient of Friction 0.25 0.25 Dynamic; Dry vs. Steel; PTM55007
K (wear) Factor 80 80 10-10 in3-min/lb-ft-hr; PTM55007
Limiting Pressure Velocity 0.0946 MPa-m/sec 2700 psi-ft/min PTM55007
Izod Impact, Notched 0.32 J/cm 0.6 ft-lb/in ASTM D256A

Electrical Properties
Surface Resistivity per Square 1e+013 ohm 1e+013 ohm EOS/ESD S11.11
Dielectric Constant 3.6 3.6 1 MHz; ASTM D150(2)
Dielectric Strength 15.7 kV/mm 400 V/mil Short Term; ASTM D149(2)
Dissipation Factor 0.02 0.02 1 MHz; ASTM D150(2)

Thermal Properties
CTE, linear 68°F 99 µm/m-°C 55 µin/in-°F ASTM E831 (TMA)
Thermal Conductivity 0.245 W/m-K 1.7 BTU-in/hr-ft²-°F
Melting Point 260 °C 500 °F ASTM D3418
Maximum Service Temperature, Air 98.9 °C 210 °F Continuous Service Without Load
Deflection Temperature at 1.8 MPa (264 psi) 93.3 °C 200 °F ASTM D648
Flammability, UL94 V-2 V-2 UL94


3. About us:

Welcome to DEHAO! Established in 2006, DEHAO is a premier supplier of high precision plastic components and parts to global corporations serving the communication, aerospace, valve seal, industrial, healthcare, and food machine markets. DEHAO has earned the reputation as a premium brand known for exceptional quality, consistency and innovation. We pride ourselves on being able to offer the latest technologies in plastic machining. At DEHAO, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

PTFE electrical  Insulator PTFE pipe sleeve 0



4. Why choosing us?



Quick response.We can send our best offer with all the details in 1 working day specicial processing we are equipped with full series of advanced machining equipment, experienced technology team, we are able to solve the complex processing problems for you. Cost time control no matter it is sample or mass production, we have the corresponding ways to minimize the cost, to expedite the delivery quality control quality is our life. Our strict quality control system can meet the different requirement in the industry like medical, automobile, telecommunication, sealing. Etc our raw material including: ptfe peek tpx pei(ultem) pet-p pa66 pa6 pctfe pps ppo pom pfa pvdf pai pi(vespel sp-1). Etc



The Materials DEHAO Machines:

ABS PC PVC PE HDPE UHMWPE
PMMA PP PPE PPO Nylon PA66
POM PET PEI PSU PPSU PVDF
PTFE PFA PCTFE ETFE ECTFE PPS
PEEK PAI PI PBI Acetal Noryl
Rexolite Delrin Rulon Duratron TECAPEEK Torlon
Kel-F Ultem Vespel TPX



Q: Are you trading company or manufacturer?
A: We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS, Food grade.

Q: Can you provide free samples?
A: Sorry, Free samples are not available for the custom parts. But after you place the order, samples cost would be return. Which is "FREE" in some way.

Q: I have a drawing, can you produce?
A: First, please send your drawing to our sales representative, they will forward all the information to our engineer and evaluate our capacity, a detail proposal will be reply with 24 hours.


Q: I have a PTFE sample but don't have drawing, what can i do?
A: In this situation, firstly please send us some photos of your sample, we will evaluate. If our factory can produce, then secondly we will ask sample from you, the Draftsman will make drawings according your sample, PS: Make sure your sample is new and unused.

Q: What are you usual terms of payment?
A: Payment welcome T/T, West Union and Paypal.

Q: What is your available tolerance?
A: Generally, tolerance is based on the design and material, we are now able to reach +/-0.001(inch) for certain parts.

Q: What is your lead time?
A: 7-15 days for normal order, we can achieve 1 week delivery for urgently order.

Q: What document will be offer along with the goods?
A: Document will be offer based on your requirement, like inspection report, packing list, material certification, date sheet, MSDS, COC and so on.

Q: What guarantee do you offer?
A: Life-long technology support, and 60 days return policy(Should make sure all the parts are new and unused).

Q: Who will offer the after-sales service?
A: Your sales representative will in charge of after-sales service, plz contact them if you have any questions.
