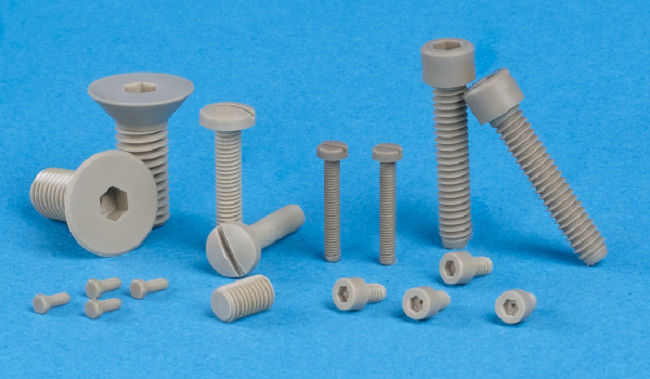

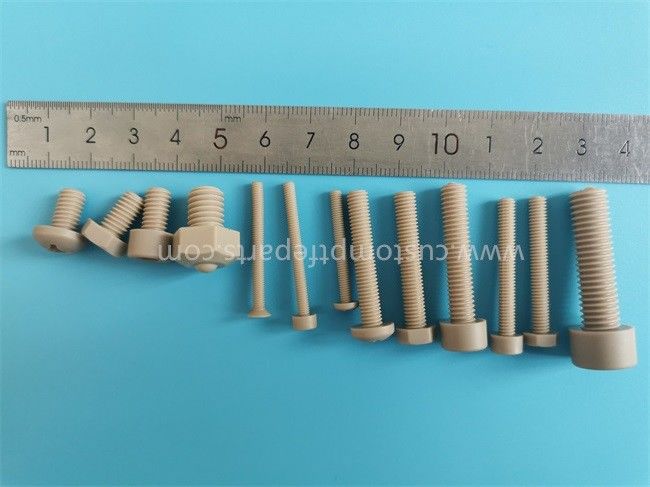

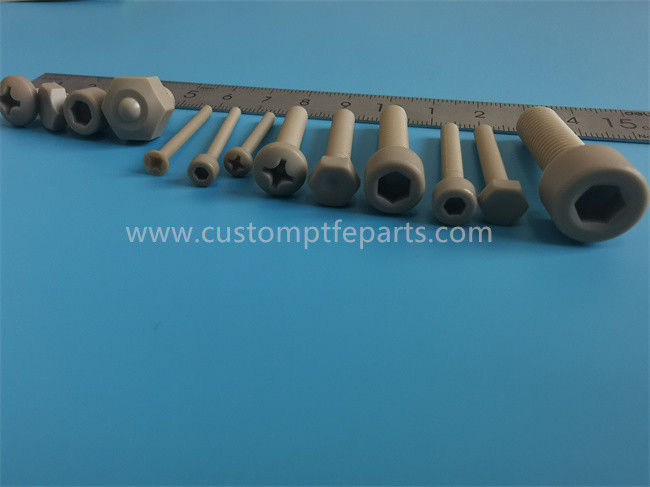

PEEK precision screw tube Peek Gear CNC machining parts PEEK Plastic Ceramic Screws Polyetheretherketone Hex Bolt
Maintains wear resistance and mechanical strength up to 480°F continuous use.
PEEK is the performance material of choice for aggressive environments such as high temperatures, wet processes, and heavy loads. It combines exceptional wear, chemical and moisture resistance with very high strength, dimensional stability and stiffness. PEEK can be continuously exposed to hot water or steam with no distortion, corrosion or galling.
Unreinforced PEEK is a general purpose material noted for its high elongation and toughness. Glass fiber-reinforced PEEK offers increased strength, stiffness and stability at high temperatures, while carbon fiber-reinforced PEEK gives designers the benefit of excellent compression strength and stiffness and reduced expansion rates. PEEK is easily machined to precise tolerances.
- Sliding and wear parts
- Food contact parts
- Valve seats
- Pump wear parts
- Structural parts
- Appliance parts
- Bushings, bearings, seals and rings
- Plug connectors
- Wafer carriers
- Superior wear resistance and dimensional stability to 480°F continuous use
- Excellent resistance to chemicals, steam and hydrolysis
- Very low moisture absorption
- Very high thermal stability (V-O UL 94 rating)
- Superb flexural and torsional strength
- Abrasion resistant
- Good dielectric properties
- Good resistance to radiation
- FDA, USDA, 3-A Dairy compliant
TYPICAL PROPERTIES OF PEEK
|Izod impact (notched)
||ft-lbs/in of notch
|Heat deflection temperature
@ 264 psi
|Maximum continuous service
temperature in air
(immersion 24 hours)
|Coefficient of linear thermal expansion
|Coefficient of friction (dynamic)
3. About us:
Welcome to DEHAO! Established in 2006, DEHAO is a premier supplier of high precision plastic components and parts to global corporations serving the communication, aerospace, valve seal, industrial, healthcare, and food machine markets. DEHAO has earned the reputation as a premium brand known for exceptional quality, consistency and innovation. We pride ourselves on being able to offer the latest technologies in plastic machining. At DEHAO, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
4. Why choosing us?
Quick response.We can send our best offer with all the details in 1 working day specicial processing we are equipped with full series of advanced machining equipment, experienced technology team, we are able to solve the complex processing problems for you. Cost time control no matter it is sample or mass production, we have the corresponding ways to minimize the cost, to expedite the delivery quality control quality is our life. Our strict quality control system can meet the different requirement in the industry like medical, automobile, telecommunication, sealing. Etc our raw material including: ptfe peek tpx pei(ultem) pet-p pa66 pa6 pctfe pps ppo pom pfa pvdf pai pi(vespel sp-1). Etc
The Materials DEHAO Machines:
Q: Are you trading company or manufacturer?
A: We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS, Food grade.
Q: Can you provide free samples?
A: Sorry, Free samples are not available for the custom parts. But after you place the order, samples cost would be return. Which is "FREE" in some way.
Q: I have a drawing, can you produce?
A: First, please send your drawing to our sales representative, they will forward all the information to our engineer and evaluate our capacity, a detail proposal will be reply with 24 hours.
Q: I have a PTFE sample but don't have drawing, what can i do?
A: In this situation, firstly please send us some photos of your sample, we will evaluate. If our factory can produce, then secondly we will ask sample from you, the Draftsman will make drawings according your sample, PS: Make sure your sample is new and unused.
Q: What are you usual terms of payment?
A: Payment welcome T/T, West Union and Paypal.
Q: What is your available tolerance?
A: Generally, tolerance is based on the design and material, we are now able to reach +/-0.001(inch) for certain parts.
Q: What is your lead time?
A: 7-15 days for normal order, we can achieve 1 week delivery for urgently order.
Q: What document will be offer along with the goods?
A: Document will be offer based on your requirement, like inspection report, packing list, material certification, date sheet, MSDS, COC and so on.
Q: What guarantee do you offer?
A: Life-long technology support, and 60 days return policy(Should make sure all the parts are new and unused).
Q: Who will offer the after-sales service?
A: Your sales representative will in charge of after-sales service, plz contact them if you have any questions.
