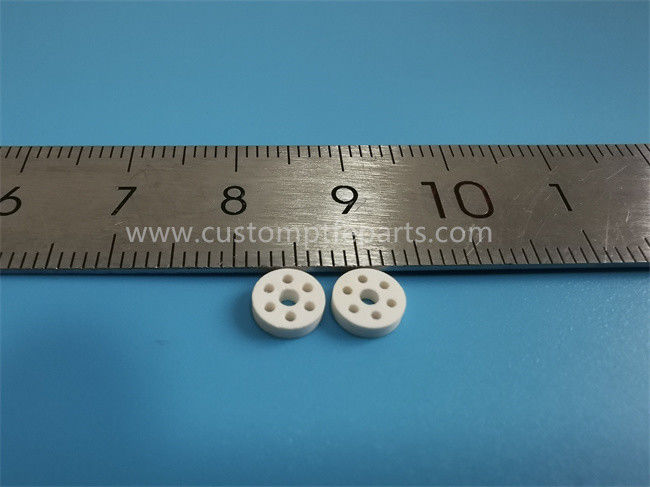

3mm PTFE Machined Parts High Thermal Conductivity Non Flammability

3mm PTFE Machined Parts High Thermal Conductivity Non Flammability

  • High Light

    3mm PTFE Machined Parts

    ,

    Non Flammability PTFE Machined Parts

    ,

    Thermal Conductivity ptfe components

  • Product Name
    PTFE Insulator, PTFE Dielectric, PTFE Parts
  • Material
    Virgin PTFE
  • Application
    Ptfe Shaft Seal
  • Certificate
    ISO 9001,RoHS,REACH,UL
  • Supply Type
    OEM Service,
  • Feature
    Sample, Small Order, Higher Cost Performance
  • Color
    White/yellow/red/black...
  • Shipping
    Support Express -Sea Freight
  • Place Of Origin
    Kunshan,Suzhou
  • Place of Origin
    China
  • Brand Name
    DEHAO
  • Certification
    ISO 9001
  • Minimum Order Quantity
    2000 pcs
  • Packaging Details
    PE bag in Carton
  • Delivery Time
    10 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10KK pcs per month

3mm PTFE Machined Parts High Thermal Conductivity Non Flammability

PTFE ceramic insulator high thermal conductivity high-power bearing shaft seal filled glass fiber carbon graphite bronze


1. Properties and Performance of PTFE



– Excellent insulating properties
– Low dynamic coefficient of friction
– Non-stick, easy to clean
– Broad working temperature range -180°C (-292°F) to 260°C (500°F)
Material Name
Compound %
Main Properties
Color
PTFE
/
Very low coefficient of friction and excellent chemical resistance.
White
Glass Filled PTFE
Up to 40%
Improved ware resistance, compression strength, creep resistance, chemical resistance. Good performance in oxidising environment, good creep resistance.
White cream
Carbon Filled PTFE
Up to 35%
Improved electrical and termal conductivity, resistance to load, low coefficient of friction in dry, water, steam applications, chemical resistance. Superior ware resistance increase and low friction properties.
Black
Graphite Filled PTFE
Up to 25%
Improve wear resistance, decrease friction and increase sliding properties against soft metals- chemical inertness. Improve the temperature resistance in some way.
Black
Bronze Filled PTFE
Up to 60%
Improved compression strength, wear resistant, high thermal conductivity, resistance to abrasion. Reduced chemical resistance.
Dark Brown
Molybdenum disulphide(MoS2) Filled PTFE
Up to 5%
Increased PTFE properties of hardness and wear resistance. Increased sliding properties and decrease friction.
Blue azure
PEEK filled PTFE
Up to 20%
Increased thermal resistance, sliding properties, surface hardness. Superior properties on dynamic applications.
Light Brown
PEEK
/
Light BrownExcellent mechanical properties including strength, rigidity, impact resistance, low wear rate and low coefficient of friction, retained over a wide range of service temperatures
Translucent
PEEK Compound
/
Improves technical and chemical properties like deformation under load, wear resistance, thermal expansion and electrical conductivity.
/
PVDF
/
Resistant to UV radiation and offers high mechanical strength and abrasion resistance.
Translucent
PCTFE
/
Better mechanical properties than other fluoropolymers, low permeability
Translucent
PFA
/
Excellent chemical and temperature resistance, electrical insulation and excellent processability
Natural

– Biological inertness
– Flexibility at low temperatures and thermal stability at high temperatures

– Non-flammability
– Chemically resistant
– all normal solvents, acids, and bases
– Excellent weatherability
– Low dielectric constant and low dissipation factor



2. About us:



Welcome to DEHAO! established in 2006, DEHAO is a premier supplier of high precision plastic components and parts to global corporations serving the communication, aerospace, valve seal, industrial, healthcare, and food machine markets. DEHAO has earned the reputation as a premium brand known for exceptional quality, consistency and innovation. We pride ourselves on being able to offer the latest technologies in plastic machining. At DEHAO, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.Product description: 1. High surface finishing 2. Precision in dimension control: â± 0.01mm 3. Full inspection 4. Short lead time

3mm PTFE Machined Parts High Thermal Conductivity Non Flammability 0

Why choosing us? quick response we can send our best offer with all the details in 1 working day specicial processing we are equipped with full series of advanced machining equipment, experienced technology team, we are able to solve the complex processing problems for you. Cost time control no matter it is sample or mass production, we have the corresponding ways to minimize the cost, to expedite the delivery quality control quality is our life. Our strict quality control system can meet the different requirement in the industry like medical, automobile, telecommunication, sealing. Etc our raw material including: ptfe peek tpx pei(ultem) pet-p pa66 pa6 pctfe pps ppo pom pfa pvdf pai pi(vespel sp-1). Etc



Q: Are you trading company or manufacturer?
A: We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS, Food grade.

Q: Can you provide free samples?
A: Sorry, Free samples are not available for the custom parts. But after you place the order, samples cost would be return. Which is "FREE" in some way.

Q: I have a drawing, can you produce?
A: First, please send your drawing to our sales representative, they will forward all the information to our engineer and evaluate our capacity, a detail proposal will be reply with 24 hours.

Q: I have a PTFE sample but don't have drawing, what can i do?
A: In this situation, firstly please send us some photos of your sample, we will evaluate. If our factory can produce, then secondly we will ask sample from you, the Draftsman will make drawings according your sample, PS: Make sure your sample is new and unused.

Q: What are you usual terms of payment?
A: Payment welcome T/T, West Union and Paypal.

Q: What is your available tolerance?
A: Generally, tolerance is based on the design and material, we are now able to reach +/-0.001(inch) for certain parts.

Q: What is your lead time?
A: 7-15 days for normal order, we can achieve 1 week delivery for urgently order.

Q: What document will be offer along with the goods?
A: Document will be offer based on your requirement, like inspection report, packing list, material certification, date sheet, MSDS, COC and so on.

Q: What guarantee do you offer?
A: Life-long technology support, and 60 days return policy(Should make sure all the parts are new and unused).

Q: Who will offer the after-sales service?
A: Your sales representative will in charge of after-sales service, plz contact them if you have any questions.
