Clear CNC Machining Plastic Parts Microwave Antennae Coaxial Cable Connectors

Clear CNC Machining Plastic Parts Microwave Antennae Coaxial Cable Connectors

  • High Light

    clear CNC Machining Plastic Parts

    ,

    Microwave CNC Machining Plastic Parts

    ,

    sound transmission Rexolite 1422

  • Product Name
    PTFE Insulator, PTFE Dielectric, PTFE Parts
  • Material
    Virgin PTFE Natural
  • Application
    RF Connector For 4G 5G
  • Certificate
    ISO 9001,RoHS,REACH,UL
  • Supply Type
    OEM Service,
  • Feature
    Small Order, Higher Cost Performance
  • Place of Origin
    China
  • Brand Name
    DEHAO
  • Certification
    ISO 9001
  • Minimum Order Quantity
    2000 pcs
  • Packaging Details
    PE bag in Carton
  • Delivery Time
    10 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10KK pcs per month

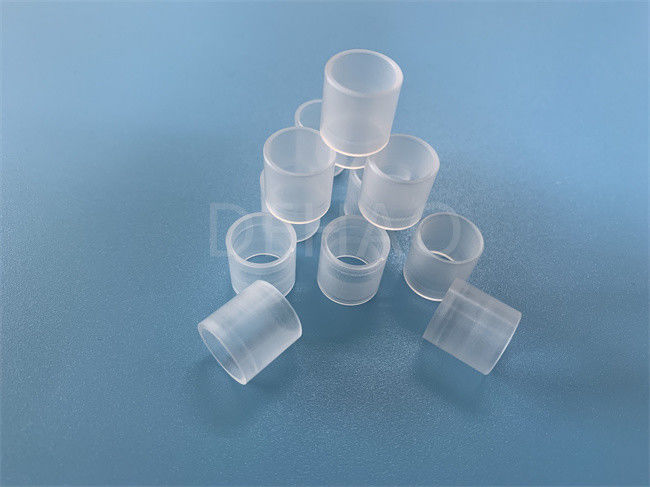

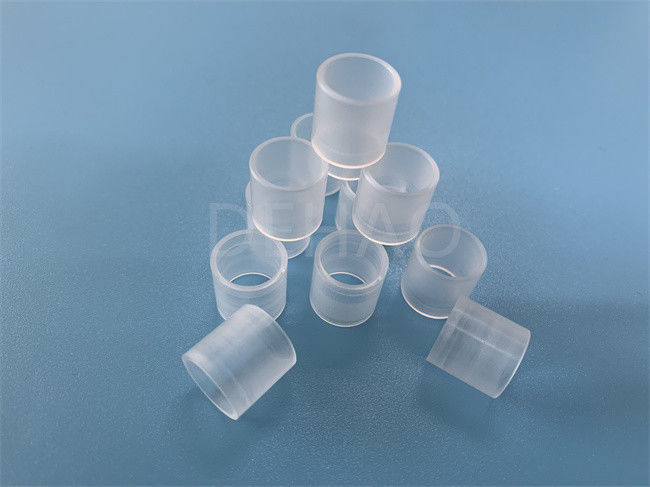

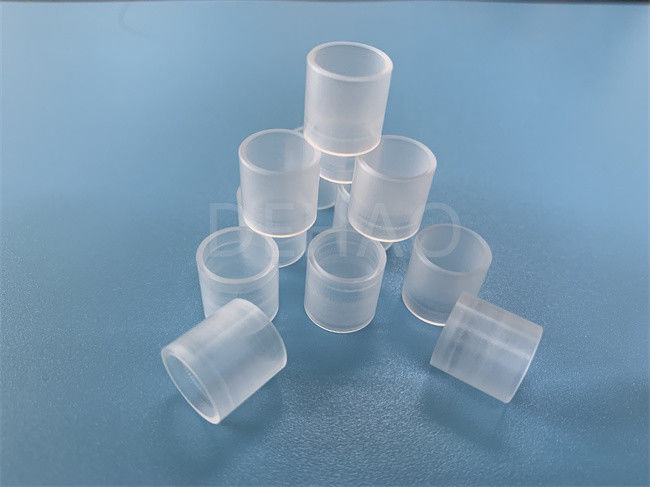

Clear CNC Machining Plastic Parts Microwave Antennae Coaxial Cable Connectors

Rexolite 1422 machined high frequency insulator cross-linked polystyrene microwave Antennae Coaxial cable connectors

1. Description:

Rexolite® is a unique cross-linked polystyrene, microwave plastic manufactured by C-Lec Plastics Inc. This material’s most notable properties are it’s stable electrical properties into the Giga-hertz frequency range. It is also optically clear, with a slight yellow cast, when polished (approximately the same as Acrylic), dimensionally stable, and has excellent sound transmission characteristics.



MECHANICAL PROPERTIES UNITS ASTM RESULTS
Flexural Strength psi D790 11,500
IZOD Impact Strength Notched ft-lb/in D256 0.3
THERMAL PROPERTIES UNITS ASTM RESULTS
Coefficient of Linear Thermal Expansion (x 10⁻⁵ in./in./°F)   7.0×10⁵
Thermal Conductivity BTU-in/ft²-hr-°F C177 1.01
Volume Resistivity, 50% RH ohm-cm   >10¹⁶
ELECTRICAL PROPERTIES UNITS ASTM RESULTS
Dielectric Strength. 1/8″ th. V/mil D149 500
Dielectric Constant @1 MHz D150 2.53
Dissipation Factor@1 MHz   D150 0.00012
Surface Resistivity @60 Hz ohms/sq D257 >10¹⁴
OPTICAL PROPERTIES UNITS ASTM RESULTS
3mm Transparent Clear Transmittance, Total (%) % D542 159

The Materials DEHAO Machines:

ABS

PC

PVC

PE

HDPE

UHMWPE

PMMA

PP

PPE

PPO

Nylon

PA66

POM

PET

PEI

PSU

PPSU

PVDF

PTFE

PFA

PCTFE

ETFE

ECTFE

PPS

PEEK

PAI

PI

PBI

Acetal

Noryl

Rexolite

Delrin

Rulon

Duratron

TECAPEEK

Torlon

Kel-F

Ultem

Vespel

TPX







Typical Rexolite® applications include:

  • Microwave lenses

  • Microwave circuitry

  • Antennae

  • Coaxial cable connectors

  • Sound transducers

  • TV satellite dishes

  • Sonar lenses

  • Non-destructive material testing devices

  • Surveillance equipment

  • Radar windows

  • Radomes

  • Missile guidance system housings





2. About us:



Welcome to DEHAO! established in 2006, DEHAO is a premier supplier of high precision plastic components and parts to global corporations serving the communication, aerospace, valve seal, industrial, healthcare, and food machine markets. DEHAO has earned the reputation as a premium brand known for exceptional quality, consistency and innovation. We pride ourselves on being able to offer the latest technologies in plastic machining. At DEHAO, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.Product description: 1. High surface finishing 2. Precision in dimension control: â± 0.01mm 3. Full inspection 4. Short lead time

Why choosing us? quick response we can send our best offer with all the details in 1 working day specicial processing we are equipped with full series of advanced machining equipment, experienced technology team, we are able to solve the complex processing problems for you. Cost time control no matter it is sample or mass production, we have the corresponding ways to minimize the cost, to expedite the delivery quality control quality is our life. Our strict quality control system can meet the different requirement in the industry like medical, automobile, telecommunication, sealing. Etc our raw material including: ptfe peek tpx pei(ultem) pet-p pa66 pa6 pctfe pps ppo pom pfa pvdf pai pi(vespel sp-1). Etc

Clear CNC Machining Plastic Parts Microwave Antennae Coaxial Cable Connectors 0



Q: Are you trading company or manufacturer?
A: We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS, Food grade.

Q: Can you provide free samples?
A: Sorry, Free samples are not available for the custom parts. But after you place the order, samples cost would be return. Which is "FREE" in some way.

Q: I have a drawing, can you produce?
A: First, please send your drawing to our sales representative, they will forward all the information to our engineer and evaluate our capacity, a detail proposal will be reply with 24 hours.

Q: I have a PTFE sample but don't have drawing, what can i do?
A: In this situation, firstly please send us some photos of your sample, we will evaluate. If our factory can produce, then secondly we will ask sample from you, the Draftsman will make drawings according your sample, PS: Make sure your sample is new and unused.

Q: What are you usual terms of payment?
A: Payment welcome T/T, West Union and Paypal.

Q: What is your available tolerance?
A: Generally, tolerance is based on the design and material, we are now able to reach +/-0.001(inch) for certain parts.

Q: What is your lead time?
A: 7-15 days for normal order, we can achieve 1 week delivery for urgently order.

Q: What document will be offer along with the goods?
A: Document will be offer based on your requirement, like inspection report, packing list, material certification, date sheet, MSDS, COC and so on.

Q: What guarantee do you offer?
A: Life-long technology support, and 60 days return policy(Should make sure all the parts are new and unused).

Q: Who will offer the after-sales service?
A: Your sales representative will in charge of after-sales service, plz contact them if you have any questions.
