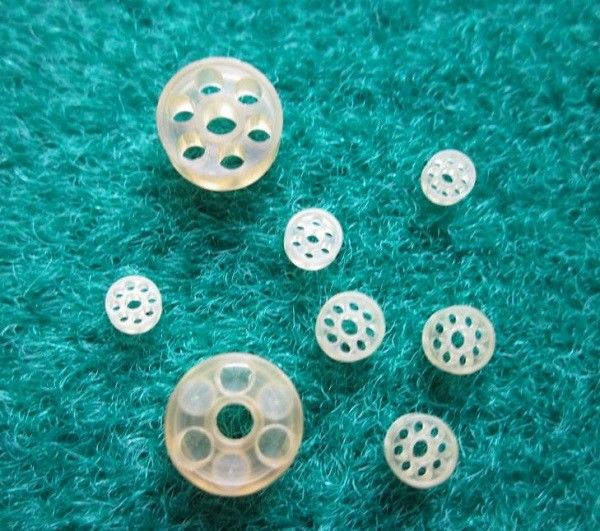

Ultem PEI machining parts

Ultem PEI machining parts

  • Material
    Ultem
  • Color
    Transparent Amber
  • Certificate
    ISO 9001,RoHS,REACH,UL
  • Feature
    Sample, Small Order, Higher Cost Performance
  • Application
    SMP SMPM 3.5 2.92mm 1.8mm RF Connector
  • OEM
    Accpet
  • Minimum Order Quantity
    2000pcs
  • Price
    negotiable
  • Packaging Details
    PE bag in Cartons
  • Delivery Time
    10 working days
  • Payment Terms
    L/C, T/T

Ultem PEI machining parts

Ultem PEI machining parts



Ultem PEI machining parts description

For machined parts requiring added strength, engineers turn to Ultem®. This high-performance thermoplastic is considered one of the best for exhibiting excellent strength and stiffness. Ultem® also maintains great dimensional stability at high temperatures (200°C).



Engineers turn to this material when they need parts machined for demanding applications in the Aerospace industry for aircraft and spacecraft and in Medical industry applications requiring repeated sterilization cycles.



As is the case with many high-performing plastics, understanding the machining characteristics of Ultem® is critical to producing a precision part. Many companies machine Ultem, but it’s critical to work with one that knows how to manage stresses in the material to achieve complex tight tolerance parts.



YPICAL PROPERTIES of ULTEM®
ASTM or UL test Property Ultem® 1000
unfilled
Ultem® 2300
30% glass
PHYSICAL
D792 Density (lb/in³)
(g/cm³)
0.046
1.28
0.055
1.51
D570 Water Absorption, 24 hrs (%) 0.25 0.18
MECHANICAL
D638 Tensile Strength (psi) 16,500 17,000
D638 Tensile Modulus (psi) 475,000 800,000
D638 Tensile Elongation at Break (%) 80 3.0
D790 Flexural Strength (psi) 20,000 30,000
D790 Flexural Modulus (psi) 500,000 900,000
D695 Compressive Strength (psi) 22,000 32,000
D695 Compressive Modulus (psi) 480,000 620,000
D785 Hardness, Rockwell M112 / R125 M114 / R127
D256 IZOD Notched Impact (ft-lb/in) 0.5 1.0
THERMAL
D696 Coefficient of Linear Thermal Expansion
(x 10-5 in./in./°F)
3.1 1.1
D648 Heat Deflection Temp (°F / °C)
at 264 psi

392 / 200

410 / 210
D3418 Glass Transition Temp (°F / °C) 419 / 215 419 / 215
- Max Operating Temp (°F / °C) 340 / 171 340 / 171
C177 Thermal Conductivity
(BTU-in/ft²-hr-°F)
(x 10-4 cal/cm-sec-°C)

0.90
3.10

0.90
3.10
UL94 Flammability Rating V-O V-O
ELECTRICAL
D149 Dielectric Strength (V/mil) short time, 1/8" thick 830 770
D150 Dielectric Constant at 1 MHz 3.15 3.70
D150 Dissipation Factor at 1 MHz 0.0013 0.0015
D257 Volume Resistivity (ohm-cm)at 50% RH 6.7 x 1017 3.0 x 1016
  • Multi-axis machining helps us achieve precise tolerances and ensures your parts are machined correctly the first time with minimal handling and fixturing. Often, even the most complex parts are completed in a single operation.
  • Digital Product Definition (DPD/MBD) processes allow us to machine complex Ultem® parts directly from your CAD models. Working directly from CAD models reduces errors and improves accuracy, resulting in decreased costs for your project.
  • First-rate communication is a top priority. You’ll have a single point of contact throughout the entire project, giving you constant updates as your project moves forward.



Q: Are you trading company or manufacturer?
A: We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS, Food grade.

Q: Can you provide free samples?
A: Sorry, Free samples are not available for the custom parts. But after you place the order, samples cost would be return. Which is "FREE" in some way.

Q: I have a drawing, can you produce?
A: First, please send your drawing to our sales representative, they will forward all the information to our engineer and evaluate our capacity, a detail proposal will be reply with 24 hours.


Q: I have a PTFE sample but don't have drawing, what can i do?
A: In this situation, firstly please send us some photos of your sample, we will evaluate. If our factory can produce, then secondly we will ask sample from you, the Draftsman will make drawings according your sample, PS: Make sure your sample is new and unused.
