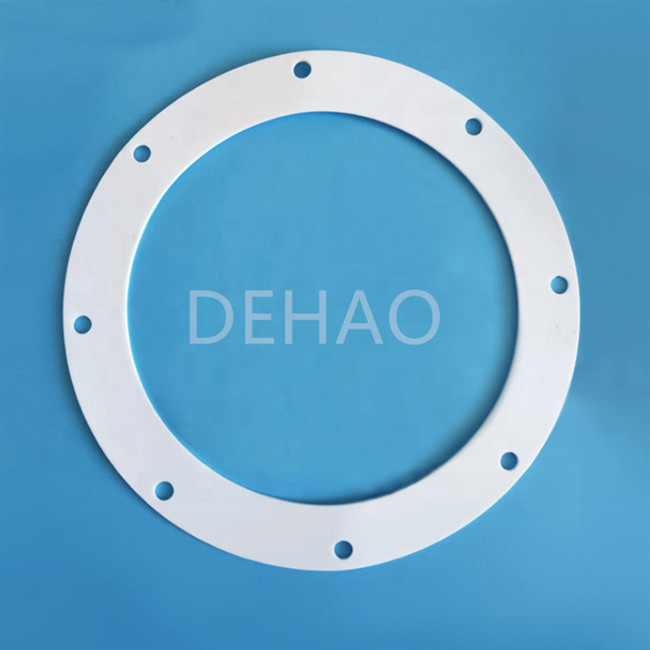

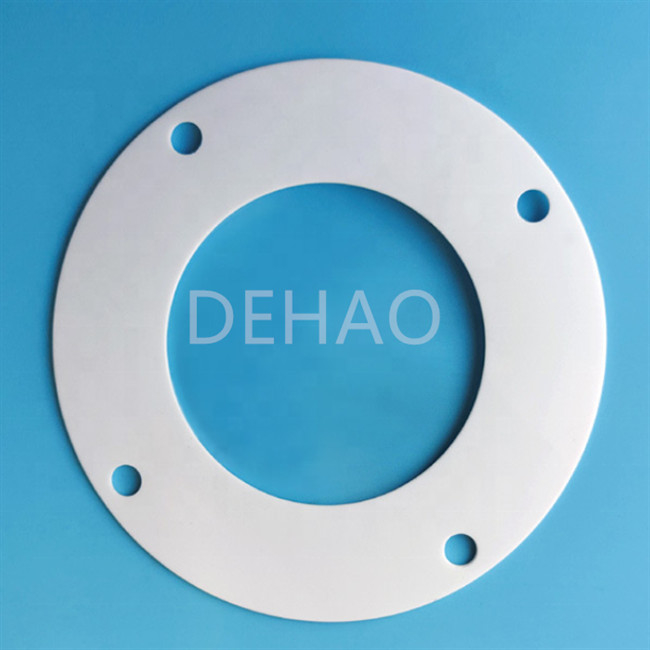

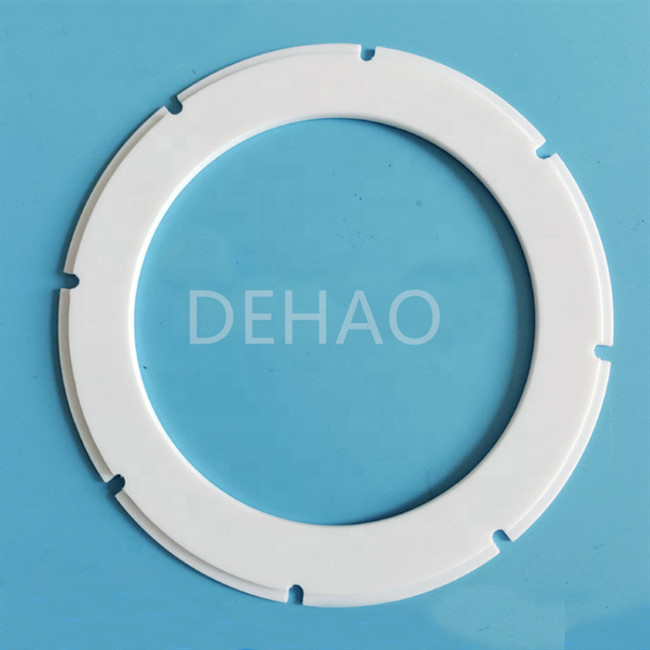

25% GF PTFE Machined Parts Carbon Fiber Filled  Graphite Spacer Cylinder Ring

25% GF PTFE Machined Parts Carbon Fiber Filled Graphite Spacer Cylinder Ring

  • High Light

    Carbon Fiber PTFE Machined Parts

    ,

    25% GF PTFE Machined Parts

    ,

    Graphite PTFE Machined Parts

  • Product Name
    PTFE Insulator, PTFE Dielectric, PTFE Parts
  • Material
    Virgin PTFE Natural
  • Application
    RF Connector For 4G 5G
  • Certificate
    ISO 9001,RoHS,REACH,UL
  • Supply Type
    OEM Service,
  • Feature
    Sample, Small Order, Higher Cost Performance
  • Shipping
    Support Express -Sea Freight
  • Place Of Origin
    Kunshan,China
  • Place of Origin
    China
  • Brand Name
    DEHAO
  • Certification
    ISO 9001
  • Model Number
    PTFE
  • Minimum Order Quantity
    2000 pcs
  • Packaging Details
    PE bag in Carton
  • Delivery Time
    10 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10KK pcs per month

25% GF PTFE Machined Parts Carbon Fiber Filled Graphite Spacer Cylinder Ring

Carbon Fiber Filled PTFE Virgin,PTFE 25%GF,PTFE +Graphite,PTFE+Carbon Gasketsring Seal Ring PTFE Spacer Cylinder Ring

Carbon fiber filled PTFE plastic shim gasketsring seal ring PTFE spacer Cylinder ring



1. Description:

PTFE PTFE Precision gasket washer insulator custom Large ring O ring Bushings and bearings


Item Ptfe custom product
Material PTFE virgin,PTFE 25%GF,PTFE +Graphite,PTFE+Carbon
Color white,black,brown or according to customed
Size according to customers' requirement,drawing will be highly appreciated
Weight from0.1gram to 10kgs
Toletence +/-0.05-0.1mm or according to different products
Processing precision CNC machined



We are a factory professional processing PTFE PCTFE PVDF PFA PI PAI PEEK PEI PPS POM ABS PC PMMA Nylon engineering plastic parts.

PTFE insulators are used primarily because of their superior dielectric properties especially at high radar and microwave
frequencies. PTFE also works in a wide temperature from –180°C to +260°C.

Material Name Compound % Main Properties Color
PTFE virgin / Very low coefficient of friction and excellent chemical resistance. White
Glass Filled PTFE Up to 25% Improved ware resistance, compression strength, creep resistance, chemical resistance. Good performance in oxidising environment, good creep resistance. White gray
Carbon Filled PTFE Up to 25% Improved electrical and termal conductivity, resistance to load, low coefficient of friction in dry, water, steam applications, chemical resistance. Superior ware resistance increase and low friction properties. Black
Graphite Filled PTFE Up to 25% Improve wear resistance, decrease friction and increase sliding properties against soft metals- chemical inertness. Improve the temperature resistance in some way. Black
Ceramic Filled PTFE Up to 25% High thermal conductivity.Great for use to improve dimensional stability.Higher hardness than virgin PTFE.Excellent chemical stability and electrical insulating properties. White cream
Bronze Filled PTFE Up to 40% Improved compression strength, wear resistant, high thermal conductivity, resistance to abrasion. Reduced chemical resistance. Dark Brown
Molybdenum disulphide(MoS2) Filled PTFE Up to 5% Increased PTFE properties of hardness and wear resistance. Increased sliding properties and decrease friction. Blue azure


2. About us:



Welcome to DEHAO! established in 2006, DEHAO is a premier supplier of high precision plastic components and parts to global corporations serving the communication, aerospace, valve seal, industrial, healthcare, and food machine markets. DEHAO has earned the reputation as a premium brand known for exceptional quality, consistency and innovation. We pride ourselves on being able to offer the latest technologies in plastic machining. At DEHAO, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.Product description: 1. High surface finishing 2. Precision in dimension control: â± 0.01mm 3. Full inspection 4. Short lead time

25% GF PTFE Machined Parts Carbon Fiber Filled  Graphite Spacer Cylinder Ring 0

Why choosing us? quick response we can send our best offer with all the details in 1 working day specicial processing we are equipped with full series of advanced machining equipment, experienced technology team, we are able to solve the complex processing problems for you. Cost time control no matter it is sample or mass production, we have the corresponding ways to minimize the cost, to expedite the delivery quality control quality is our life. Our strict quality control system can meet the different requirement in the industry like medical, automobile, telecommunication, sealing. Etc our raw material including: ptfe peek tpx pei(ultem) pet-p pa66 pa6 pctfe pps ppo pom pfa pvdf pai pi(vespel sp-1). Etc



The Materials DEHAO Machines:
ABS PC PVC PE HDPE UHMWPE
PMMA PP PPE PPO Nylon PA66
POM PET PEI PSU PPSU PVDF
PTFE PFA PCTFE ETFE ECTFE PPS
PEEK PAI PI PBI Acetal Noryl
Rexolite Delrin Rulon Duratron TECAPEEK Torlon
Kel-F Ultem Vespel TPX



Q: Are you trading company or manufacturer?
A: We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS, Food grade.

Q: Can you provide free samples?
A: Sorry, Free samples are not available for the custom parts. But after you place the order, samples cost would be return. Which is "FREE" in some way.

Q: I have a drawing, can you produce?
A: First, please send your drawing to our sales representative, they will forward all the information to our engineer and evaluate our capacity, a detail proposal will be reply with 24 hours.

Q: I have a PTFE sample but don't have drawing, what can i do?
A: In this situation, firstly please send us some photos of your sample, we will evaluate. If our factory can produce, then secondly we will ask sample from you, the Draftsman will make drawings according your sample, PS: Make sure your sample is new and unused.

Q: What are you usual terms of payment?
A: Payment welcome T/T, West Union and Paypal.

Q: What is your available tolerance?
A: Generally, tolerance is based on the design and material, we are now able to reach +/-0.001(inch) for certain parts.

Q: What is your lead time?
A: 7-15 days for normal order, we can achieve 1 week delivery for urgently order.

Q: What document will be offer along with the goods?
A: Document will be offer based on your requirement, like inspection report, packing list, material certification, date sheet, MSDS, COC and so on.

Q: What guarantee do you offer?
A: Life-long technology support, and 60 days return policy(Should make sure all the parts are new and unused).

Q: Who will offer the after-sales service?
A: Your sales representative will in charge of after-sales service, plz contact them if you have any questions.
