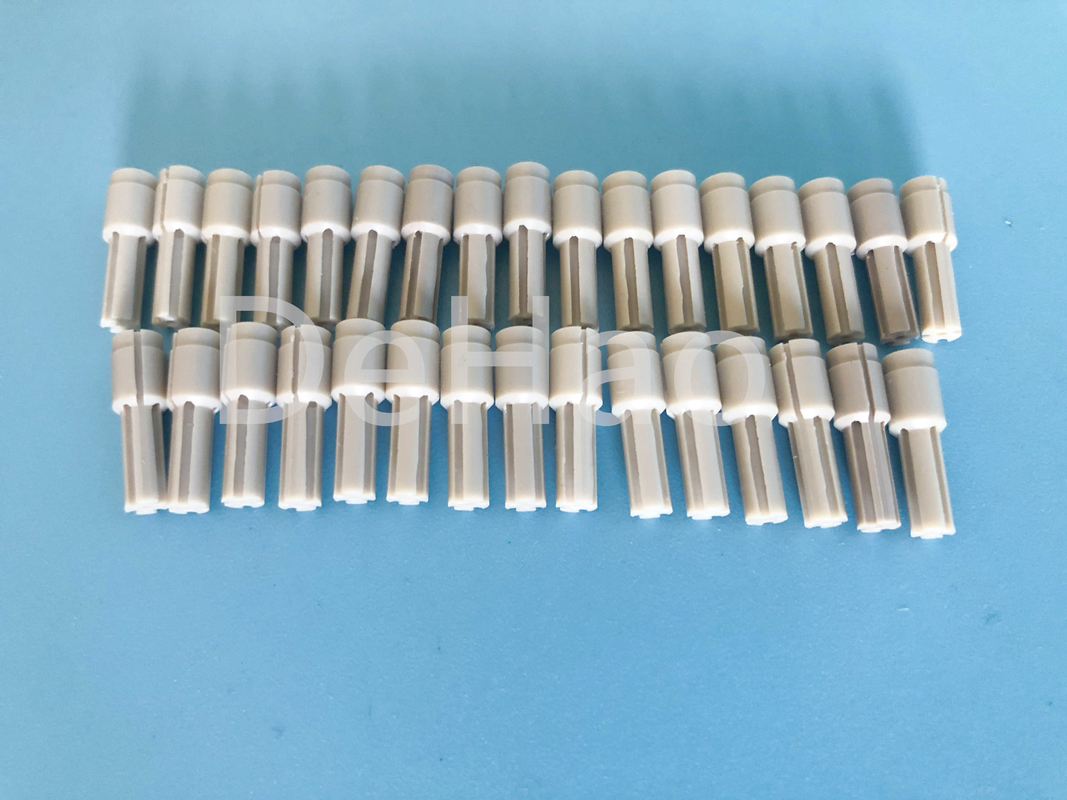

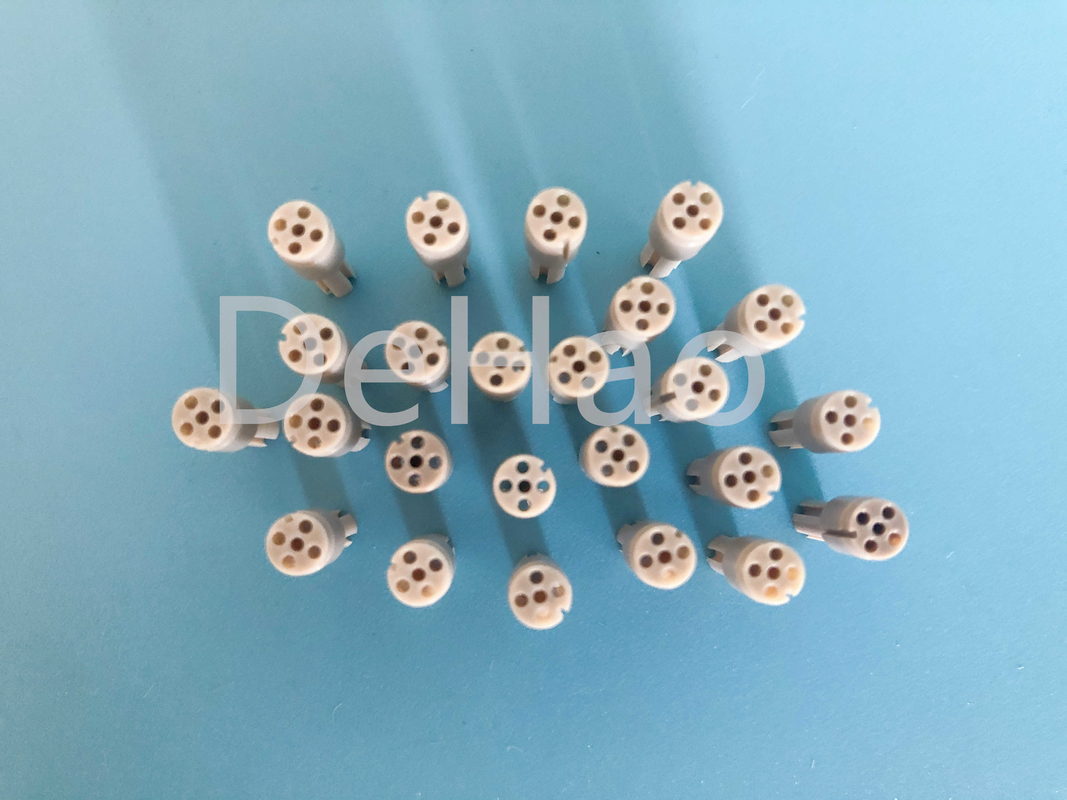

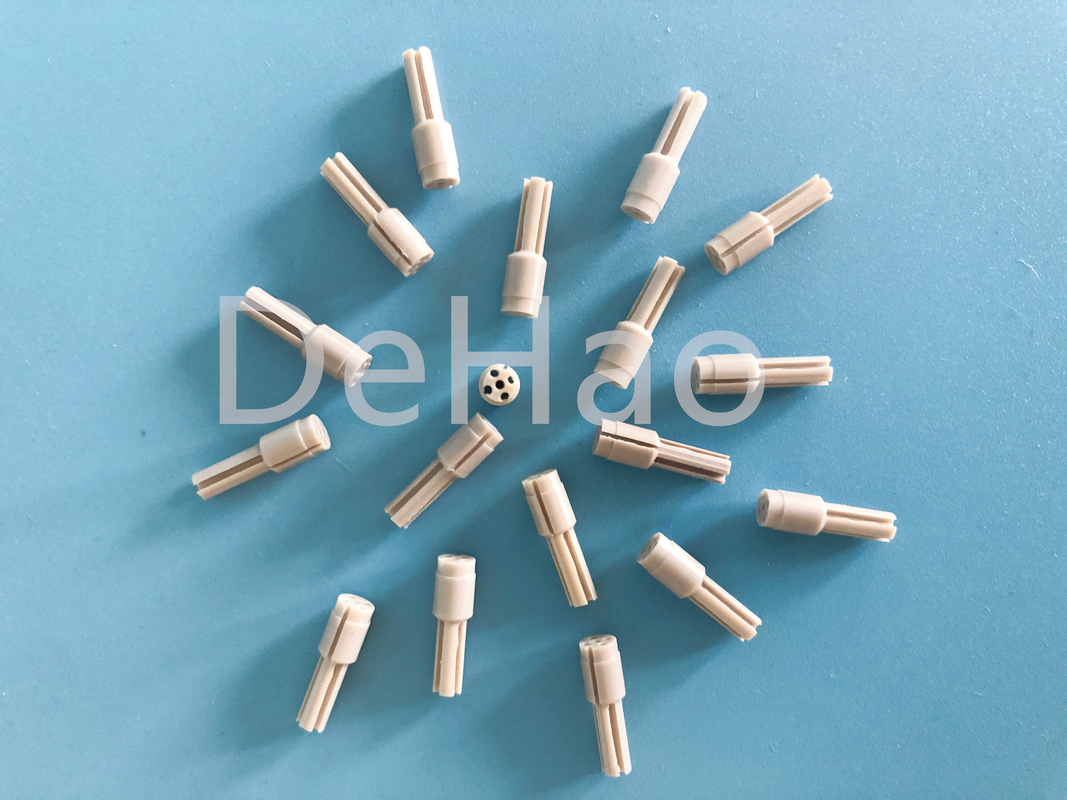

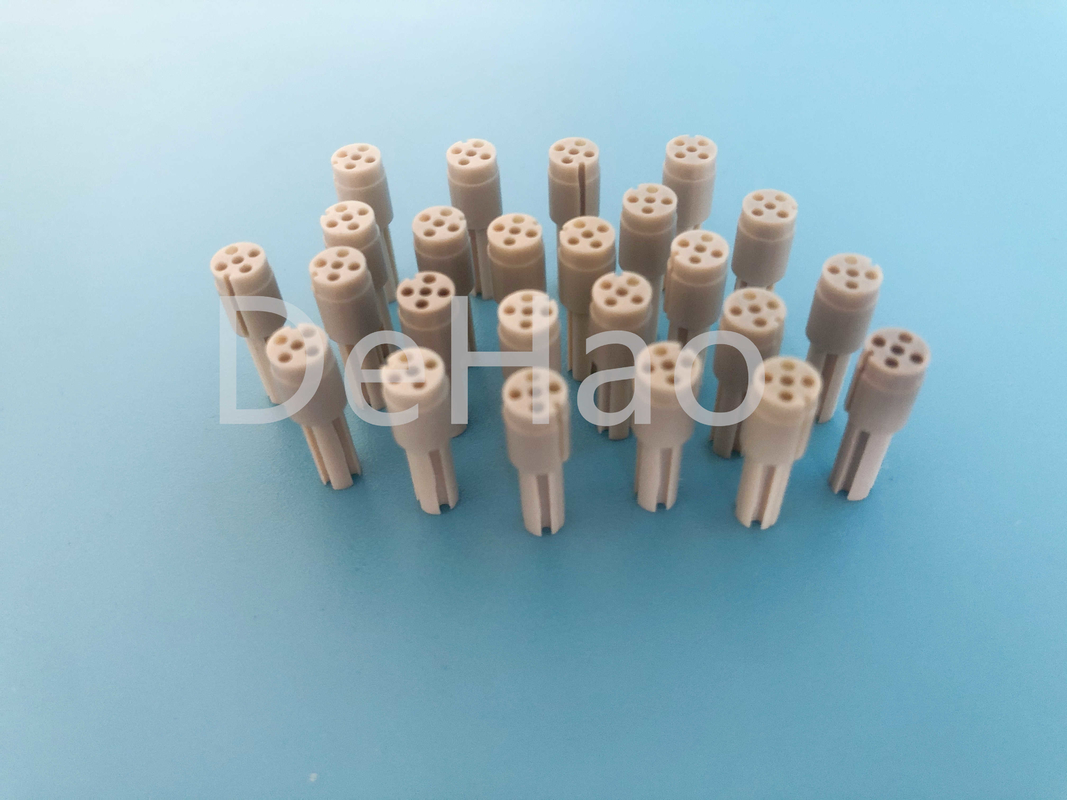

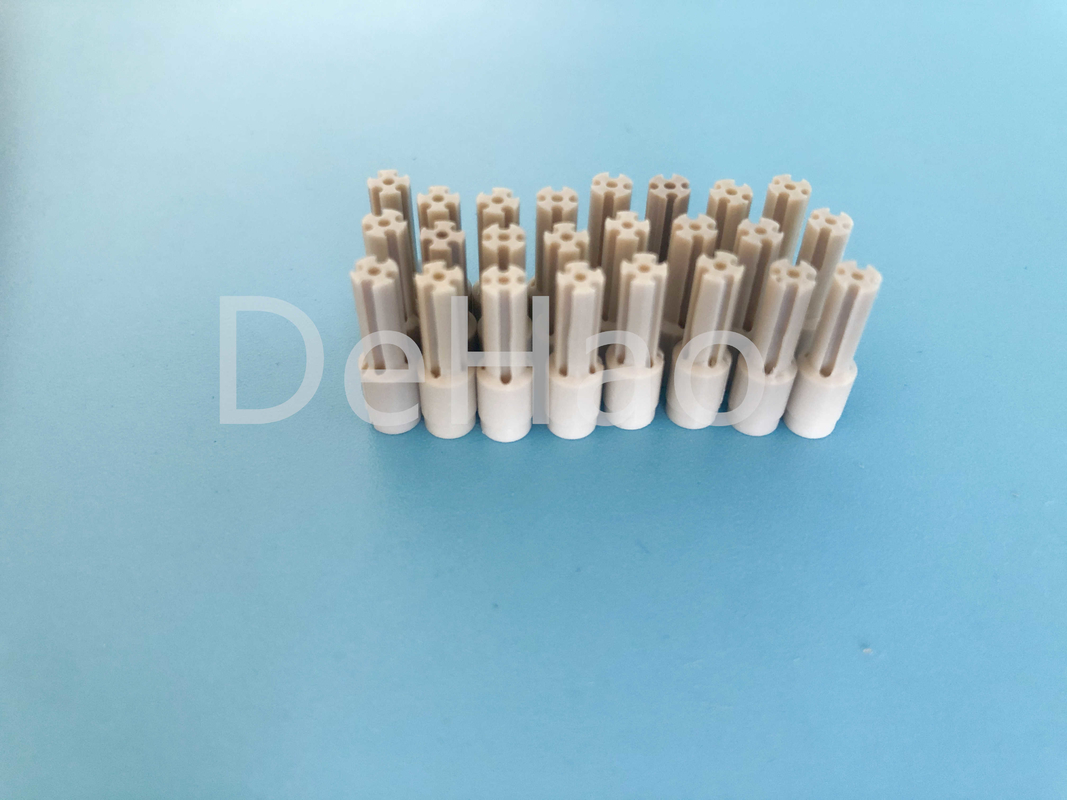

PEEK 450G Machined Insulator SMA 2.92MM RF Connector Adapter

PEEK 450G Machined Insulator SMA 2.92MM RF Connector Adapter

  • High Light

    PEEK 450G Machined Insulator


    Beige Opaque Machined Insulator


    Insulator PEEK Machined Parts

  • Material
  • Color
    Beige Opaque
  • Application
    Rings Bushings Bearing Sleeves
  • Certificate
    ISO 9001,RoHS,REACH,UL
  • Supply Type
    OEM Service
  • Shipping
    Support Express -Sea Freight
  • Feature
    Sample, Small Order, Higher Cost Performance
  • Place Of Origin
  • Place of Origin
  • Brand Name
  • Certification
    ISO 9001
  • Model Number
    PEEK Parts
  • Minimum Order Quantity
    2000 Piece
  • Packaging Details
    PE bag in Cartons
  • Delivery Time
    10 working days
  • Payment Terms
    L/C, T/T

PEEK 450G Machined Insulator SMA 2.92MM RF Connector Adapter

PEEK 450G Machined Insulator SMA 2.92MM RF Connector Adapter


PolyEtherEtherKetone (PEEK)

PolyEtherEtherKetone (PEEK) is a high-performance engineering thermoplastic that offers chemical and water resistance while operate at higher temperatures. Peek Unfilled is a general-purpose grade that is unreinforced and offers the highest elongation and toughness of all PEEK grades. Unfilled PEEK is available in sheet and rod forms in multiple colors including: natural (a very light brown or tan) and black colors. Black PEEK is ideal for instrument components where aesthetics is important, as well as for seal components where ductility and inertness are important. All unfilled PEEK grades comply with FDA regulation 21 CFR 177.2415 for repeated food contact.

2. Application

  • Sliding and wear parts
  • Food contact parts
  • Gears
  • Valve seats
  • Pump wear parts
  • Structural parts
  • Appliance parts
  • Bushings, bearings, seals and rings
  • Plug connectors
  • Wafer carriers

3. Properties

  • Superior wear resistance and dimensional stability to 480°F continuous use
  • Excellent resistance to chemicals, steam and hydrolysis
  • Very low moisture absorption
  • Very high thermal stability (V-O UL 94 rating)
  • Superb flexural and torsional strength
  • Abrasion resistant
  • Good dielectric properties
  • Good resistance to radiation
  • Self-extinguishing
  • FDA, USDA, 3-A Dairy compliant
Property Test methods PEEK PEEK GF30%
Specific Gravity(g/cm3) D792 1.31 1.54
Water Absorption(%) D570/24H 0.1 0.1
Molding Shrinkage(cm/cm)
Thermal Conductivity C177 3.02W/(M.K) 5.15W/(M.K)
Coefficient of Linear Thermal Expansion(1/℃) D696(23-60℃) 2.6*10-5 1.2*10-5
Melting Point(℃) D4591 340 340
Heat Deflection Temp.(℃) D648 at 1.8MPa 160 315
Max Operating Temp.(℃) No load 249 249
Tensile Strength(Mpa) D638/23℃ 110 110
Elongation(%) D638/23℃ 20 3
Compressive Strength(Mpa) D695/1%,25℃ 118 179
Tensile Spring Rate(Mpa) D638/23℃ 20
Flexural Spring Rate(Mpa) D790/23℃ 172 193
Impact Strength(J/M) D256/23℃ IZOD 53.4 74.7
Hardness   M100 M103
Dielectric Constant D150/60Hz
D150/106Hz 3.3 3.7
Dissipation Factor D150/60Hz
D150/106Hz 3*10-3 5*10-3
Dielectric Strength(MV/m) D149,3.2mm 18.89 19.69
Volume Resistivity(Ω-cm) D257 4.9*1016 5.0*1017
Flame-Retardant UL94 V-0 V-0


3. About us:

Welcome to DEHAO! Established in 2006, DEHAO is a premier supplier of high precision plastic components and parts to global corporations serving the communication, aerospace, valve seal, industrial, healthcare, and food machine markets. DEHAO has earned the reputation as a premium brand known for exceptional quality, consistency and innovation. We pride ourselves on being able to offer the latest technologies in plastic machining. At DEHAO, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

PTFE electrical  Insulator PTFE pipe sleeve 0


4. Why choosing us?


Quick response.We can send our best offer with all the details in 1 working day specicial processing we are equipped with full series of advanced machining equipment, experienced technology team, we are able to solve the complex processing problems for you. Cost time control no matter it is sample or mass production, we have the corresponding ways to minimize the cost, to expedite the delivery quality control quality is our life. Our strict quality control system can meet the different requirement in the industry like medical, automobile, telecommunication, sealing. Etc our raw material including: ptfe peek tpx pei(ultem) pet-p pa66 pa6 pctfe pps ppo pom pfa pvdf pai pi(vespel sp-1). Etc


The Materials DEHAO Machines:

PEEK PAI PI PBI Acetal Noryl
Rexolite Delrin Rulon Duratron TECAPEEK Torlon
Kel-F Ultem Vespel TPX


Q: Are you trading company or manufacturer?
A: We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS, Food grade.

Q: Can you provide free samples?
A: Sorry, Free samples are not available for the custom parts. But after you place the order, samples cost would be return. Which is "FREE" in some way.

Q: I have a drawing, can you produce?
A: First, please send your drawing to our sales representative, they will forward all the information to our engineer and evaluate our capacity, a detail proposal will be reply with 24 hours.

Q: I have a PTFE sample but don't have drawing, what can i do?
A: In this situation, firstly please send us some photos of your sample, we will evaluate. If our factory can produce, then secondly we will ask sample from you, the Draftsman will make drawings according your sample, PS: Make sure your sample is new and unused.

Q: What are you usual terms of payment?
A: Payment welcome T/T, West Union and Paypal.

Q: What is your available tolerance?
A: Generally, tolerance is based on the design and material, we are now able to reach +/-0.001(inch) for certain parts.

Q: What is your lead time?
A: 7-15 days for normal order, we can achieve 1 week delivery for urgently order.

Q: What document will be offer along with the goods?
A: Document will be offer based on your requirement, like inspection report, packing list, material certification, date sheet, MSDS, COC and so on.

Q: What guarantee do you offer?
A: Life-long technology support, and 60 days return policy(Should make sure all the parts are new and unused).

Q: Who will offer the after-sales service?
A: Your sales representative will in charge of after-sales service, plz contact them if you have any questions.
