Low Temperature PCTFE Kel F High Purity Extruded Rod Radiation resistance

Low Temperature PCTFE Kel F High Purity Extruded Rod Radiation resistance

  • High Light

    35Mpa Low Temperature PCTFE Kel F

    ,

    35Mpa PCTFE Kel F

    ,

    35Mpa Extruded pctfe rod

  • Place of Origin
    China
  • Brand Name
    DeHao
  • Certification
    SGS,ROHS,REACH
  • Model Number
    Kel F PCTFE Rod
  • Packaging Details
    Poly Bag,Carton
  • Delivery Time
    5-8 work days
  • Payment Terms
    T/T

Low Temperature PCTFE Kel F High Purity Extruded Rod Radiation resistance

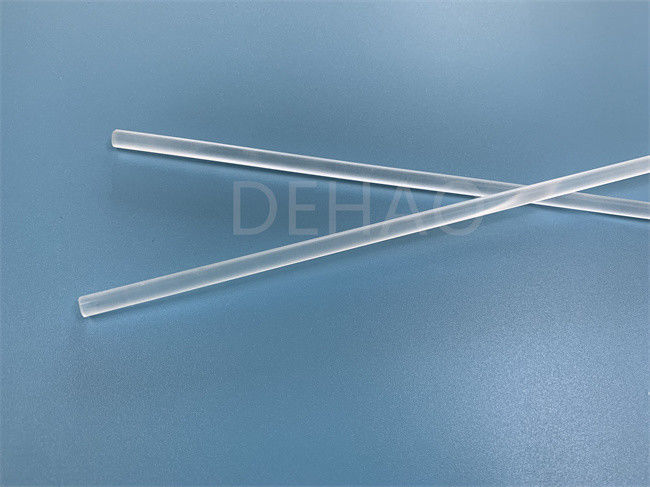

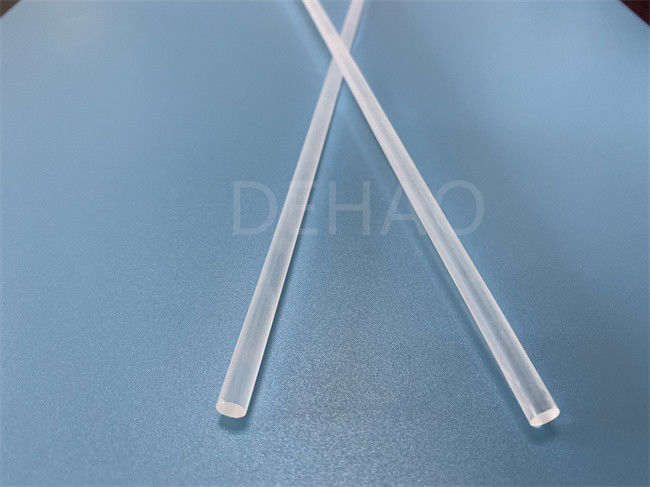

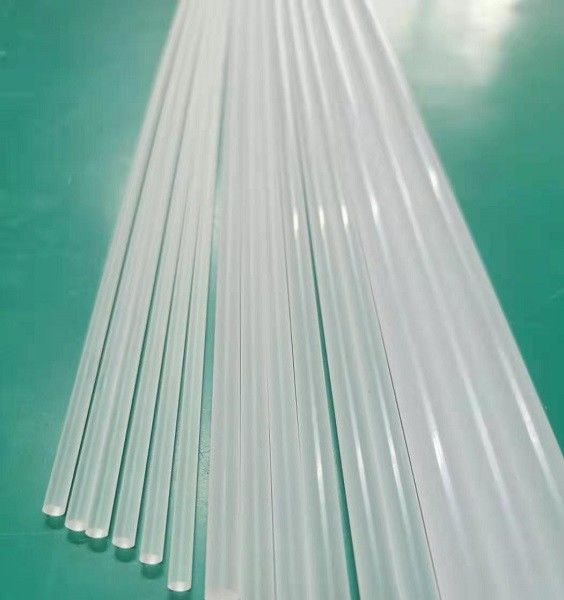

Low Temperature PCTFE Kel F High Purity Extruded Rod



PCTFE or CTFE (originally known as Kel-F*) has many of the properties similar to other fluoropolymers such as PTFE, FEP or PFA, but is mechanically superior in rigidity (does not deform easily), and has very low gas permeability. Its dimensional stability makes it attractive for use as a component of a structural part where the high temperature and chemical resistance of fluoropolymers is required. PCTFE shows high compressive strength and low deformation under load.



Technical Index:

Properties units Indicators
Density g/cm3 2.1-2.2
Tensile strength MPa ≥35
Elongation at break % 20-100
volume resistivity Ω·cm ≥1×1010
Hardness Shores hardness D90
breakdown voltage Kv/mm ≥15
Temperature range °C -200°C~+120°C



1. Dimensionally stable, rigid, and resistant to cold flow

2. Very low gas permeation and outgassing

3. Near zero moisture absorption

4. Excellent chemical resistance

5. Useful temperature range: 400°F to 380°F

6. Radiation resistance



APPLICATION:

PCTFE is a good choice for instrumentation, laboratory, aerospace and flight applications. Other common applications include cryogenics, valves, seals, and film for food and pharmaceutical packaging.
