Polychlorotrifluoroethylene PCTFE Kel F Low Temperature Components

Polychlorotrifluoroethylene PCTFE Kel F Low Temperature Components

  • High Light

    rings PCTFE Kel F

    ,

    RoHS PCTFE Kel F

    ,

    polychlorotrifluoroethylene pctfe

  • Material
    PCTFE
  • Color
    Transparent
  • Application
    Rings Bushings Bearing Sleeves
  • Certificate
    ISO 9001,RoHS,REACH,UL
  • Supply Type
    OEM Service
  • Feature
    Sample, Small Order, Higher Cost Performance
  • Shipping
    Support Express -Sea Freight
  • Place Of Origin
    Kunshan, China
  • Place of Origin
    China
  • Brand Name
    DeHao
  • Certification
    ISO 9001
  • Model Number
    PCTFE Parts
  • Minimum Order Quantity
    2000 Piece
  • Packaging Details
    PE bag in Cartons
  • Delivery Time
    10 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10KK pcs per month

Polychlorotrifluoroethylene PCTFE Kel F Low Temperature Components

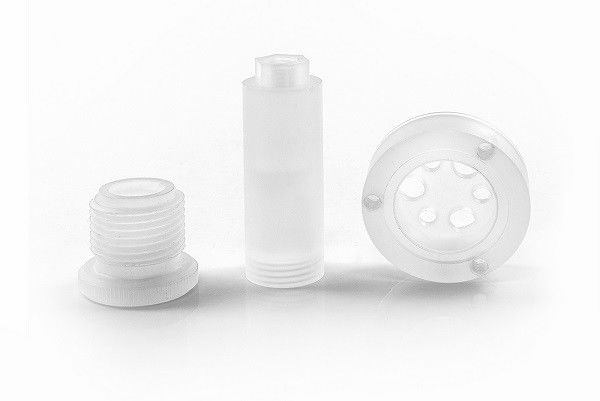

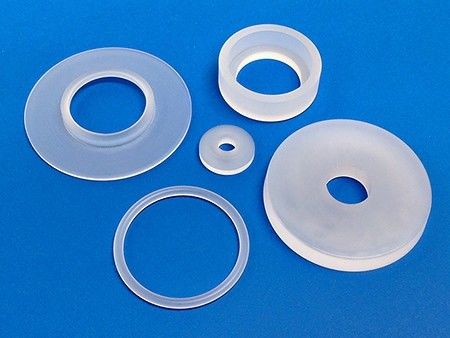

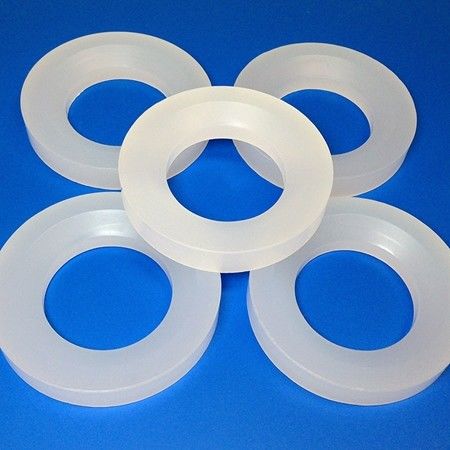

PCTFE Components PCTFE valve seats pctfe seals custom parts



PCTFE(Polychlorotrifluoroethylene) is a fluorocarbon based polymer. It offers the unique combination of physical and mechanical properties, non flammability, low permeation capability to moisture and steam atmosphere compared to other plastics. The heat resistance and chemical resistance capability is less than PFA and FEP, however, mechnical characteristics(especially hardness) are superior. It is suitable for utilizing in temperature range of -200℃~150℃,specially for cryogenic applications such as oxygen, hydrogen, nitrogen and more. PCTFE have a very strong resistance performance to low temperature.

Main properties:

  • Stress-crack resistance
  • High mechanical strength and low shrinkage rate at low temperatures providing excellent stability for valve seats.
  • Excellent stability at low temperatures
  • Good machining properties
  • Excellent chemical resistance to all inorganic corrosive liquids
  • Practically zero moisture absorption
  • Excellent electrical properties maintained in high humidity conditions
  • Maximum temperature for continuous use: 248 F (120 C)
  • Melting point: Approx. 410 F
  • These characteristics are maintained over a working range of
    -400 deg. F to 248 deg. F (-240 deg. C to 120 deg. C).
PCTFE – Poly (chloro trifluoro ethylene) TYPICAL PROPERTIES
Property Method Units Value
MECHANICAL PROPERTIES
Tensile Strength D 638 psi 4860 - 5710
    MPa 34 - 39
Elongation D 638 % 100 - 250
Flexural Strength, 73°F   psi 9570 - 10300
    MPa 66 - 71
Flex Modulus   psi 200 – 243 x 103
    MPa 1.4 – 1.7
Impact Strength, Izod, 23 deg C D 256 ft-lb/in 2.5 – 3.5
Compressive Stress at 1% deformation, D 695 psi 1570 – 1860
    MPa 11月13日
Density   gm/cu.cm 2.10 to 2.17
THERMAL PROPERTIES
Coefficient of Linear Expansion   K-1 7 x 10-5
Melting Point   deg F 410 -414
    deg C 210 - 212
Thermal Conductivity ASTM C 177 Btu·in/h·ft2·°F 1.45
    W/m·K 0.84
Specific Heat   Btu/lb/deg F 0.22
    kJ/Kg/deg K 0.92
Heat Distortion Temperature, 66 lb/sq.in (0.455 MPa) D 648 deg F 259
    deg C 126
Processing Temperature   deg F 620
    deg C 327
ELECTRICAL PROPERTIES
Dielectric Strength, short time, 0.004” D 149 Volt/mil 3000
Arc-Resistance D 495 sec 360
Volume Resistivity, @ 50% RH D 257 ohm-cm 2 x 1017
Surface Resistivity, @ 100% RH D 257 Ohm sq-1 1 x 1015
Dielectric Constant, 1 kHz D150-81 ε 2.6
Dissipation Factor, @ 1 kHz D150-81   0.02
OTHER PROPERTIES
Water Absorption D570-81 % increase in weight 0
Flame Rating+ D 635   Non-flammable
Coefficient of friction D 1894
Specific Gravity D792   2.10 to 2.17
Moisture Permeability Constant   g/m, 24 hours 0.2
O2 Permeability   Cc, cm/sq.cm, sec, atm 1.5 x 10-10
N2 Permeability   Cc, cm/sq.cm, sec, atm 0.18 x 10-10
CO2 Permeability   Cc, cm/sq.cm, sec, atm 2.9 x 10-10
H2 Permeability   Cc, cm/sq.cm, sec, atm 56.4 x 10-10



3. About us:

Welcome to DEHAO! Established in 2006, DEHAO is a premier supplier of high precision plastic components and parts to global corporations serving the communication, aerospace, valve seal, industrial, healthcare, and food machine markets. DEHAO has earned the reputation as a premium brand known for exceptional quality, consistency and innovation. We pride ourselves on being able to offer the latest technologies in plastic machining. At DEHAO, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

PTFE electrical  Insulator PTFE pipe sleeve 0



4. Why choosing us?



Quick response.We can send our best offer with all the details in 1 working day specicial processing we are equipped with full series of advanced machining equipment, experienced technology team, we are able to solve the complex processing problems for you. Cost time control no matter it is sample or mass production, we have the corresponding ways to minimize the cost, to expedite the delivery quality control quality is our life. Our strict quality control system can meet the different requirement in the industry like medical, automobile, telecommunication, sealing. Etc our raw material including: ptfe peek tpx pei(ultem) pet-p pa66 pa6 pctfe pps ppo pom pfa pvdf pai pi(vespel sp-1). Etc



The Materials DEHAO Machines:

ABS PC PVC PE HDPE UHMWPE
PMMA PP PPE PPO Nylon PA66
POM PET PEI PSU PPSU PVDF
PTFE PFA PCTFE ETFE ECTFE PPS
PEEK PAI PI PBI Acetal Noryl
Rexolite Delrin Rulon Duratron TECAPEEK Torlon
Kel-F Ultem Vespel TPX



Q: Are you trading company or manufacturer?
A: We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS, Food grade.

Q: Can you provide free samples?
A: Sorry, Free samples are not available for the custom parts. But after you place the order, samples cost would be return. Which is "FREE" in some way.

Q: I have a drawing, can you produce?
A: First, please send your drawing to our sales representative, they will forward all the information to our engineer and evaluate our capacity, a detail proposal will be reply with 24 hours.


Q: I have a PTFE sample but don't have drawing, what can i do?
A: In this situation, firstly please send us some photos of your sample, we will evaluate. If our factory can produce, then secondly we will ask sample from you, the Draftsman will make drawings according your sample, PS: Make sure your sample is new and unused.

Q: What are you usual terms of payment?
A: Payment welcome T/T, West Union and Paypal.

Q: What is your available tolerance?
A: Generally, tolerance is based on the design and material, we are now able to reach +/-0.001(inch) for certain parts.

Q: What is your lead time?
A: 7-15 days for normal order, we can achieve 1 week delivery for urgently order.

Q: What document will be offer along with the goods?
A: Document will be offer based on your requirement, like inspection report, packing list, material certification, date sheet, MSDS, COC and so on.

Q: What guarantee do you offer?
A: Life-long technology support, and 60 days return policy(Should make sure all the parts are new and unused).

Q: Who will offer the after-sales service?
A: Your sales representative will in charge of after-sales service, plz contact them if you have any questions.
