RoHS Torlon Rods PAI 4203 SMP SMPM 3.5 2.92mm 1.8mm RF Connector

RoHS Torlon Rods PAI 4203 SMP SMPM 3.5 2.92mm 1.8mm RF Connector

  • High Light

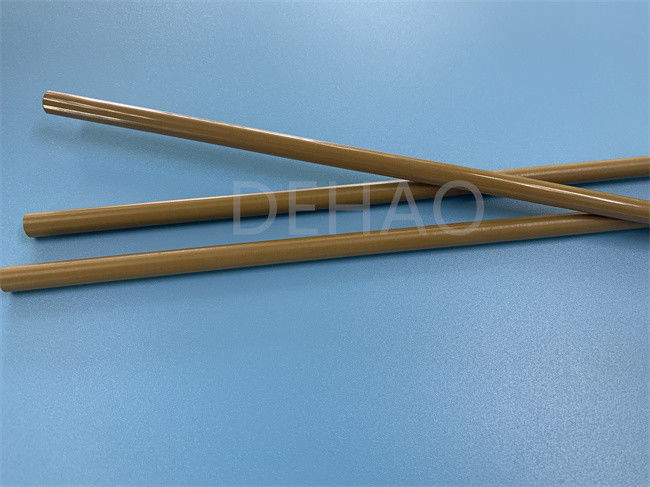

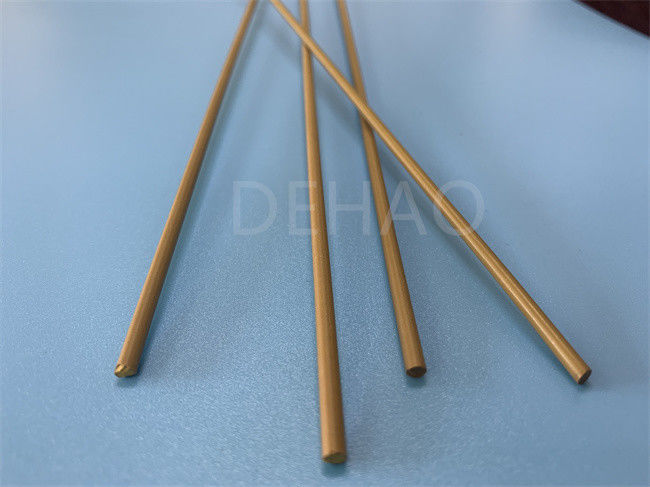

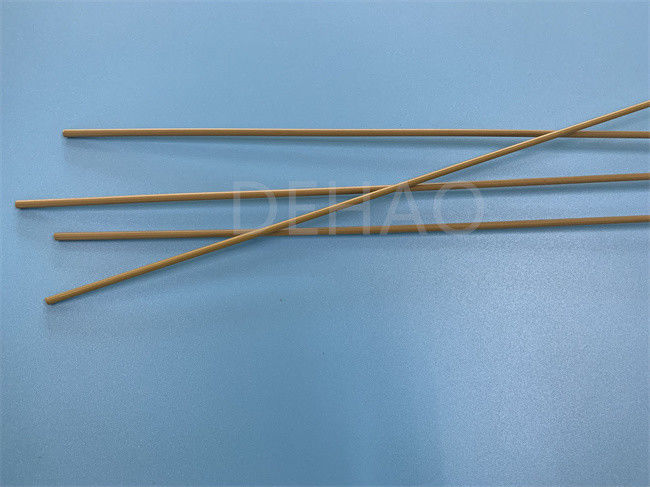

    RoHS OEM Torlon Rods

    ,

    RoHS Torlon Rods

    ,

    claybank PAI 4203

  • Material
    Torlon 4203
  • Color
    Claybank
  • Application
    SMP SMPM 3.5 2.92mm 1.8mm RF Connector
  • Certificate
    ISO 9001,RoHS,REACH,UL
  • Supply Type
    OEM Service
  • Feature
    Sample, Small Order, Higher Cost Performance
  • Shipping
    Support Express -Sea Freight
  • Place Of Origin
    Kunshan,Suzhou
  • Place of Origin
    China
  • Brand Name
    DeHao
  • Certification
    ISO9001
  • Model Number
    Torlon 4203 Insulator
  • Minimum Order Quantity
    2000 Piece
  • Packaging Details
    PE bag in Cartons
  • Delivery Time
    10 working days
  • Payment Terms
    L/C, T/T

RoHS Torlon Rods PAI 4203 SMP SMPM 3.5 2.92mm 1.8mm RF Connector



Torlon 4203 high frequency RF connector SMP SMPM 3.5 2.92 1.8mm connector Anti-wear plastic wear-resistant





1. Description:

Torlon® 4203 polyamide-imide offers excellent compressive strength and the highest elongation of the Torlon grades. Several manufacturers offer bearing grade versions by the tradenames Duratron® PAI, and Tecator®. It provides electrical insulation and exceptional impact strength. Torlon® 4203 is commonly used for electrical connectors and insulators due to its high dielectric strength. It is also an excellent choice for bearing and wear applications involving impact loading and abrasive environments. Its ability to carry high loads over a broad temperature range makes it ideal for structural components such as linkage bearings and seal rings.



2. Application

  • Electrical connectors
  • Electrical insulators
  • Chip nests
  • Sockets
  • Wear applications
  • Linkages
  • Seal rings

3. Properties

  • Excellent compressive and impact strength
  • Excellent electrical insulation
  • High dielectric strength
  • Superior resistance to elevated temperatures
  • Good dimensional stability
  • Creep resistant
  • Self-lubricating
  • Lightweight
  • Good chemical resistance
  • Superior mechanical properties at elevated temperatures
  • Absorbs moisture







Specification Test Value Units
Specific Gravity, 73°F D792 1.41
Tensile Strength @ Yield, 73°F D638 20,000 psi
Tensile Modulus of Elasticity, 73°F D638 600,000 psi
Tensile Elongation (at break), 73°F D638 10 %
Flexural Strength, 73°F D790 24,000 psi
Flexural Modulus of Elasticity D790 600,000 psi
Shear Strength, 73°F D732 16,000 psi
Compressive Strength – Ultimate     psi
Compressive Strength at 2% Deformation D695   psi
Compressive Strength at 10% Deformation D695 24,000 psi
Deformation Under Load     %
Compressive Modulus of Elasticity, 73°F D695 478,000
Compressive Strength ⊥ to Laminate (Modulus)     psi
Compressive Strength ⊥ to Laminate (Yield)     psi
Compressive Strength ⊥ to Laminate (Ultimate)     psi
Hardness, Durometer (Shore “D” scale) D2240
Hardness, Rockwell (Scale as noted) D785 E80 (M120) Rockwell M
Izod Impact, Notched @ 73°F D256 Type A 2.0 ft.lbs/in. of notch
Coefficient of Friction (Dry vs Steel) Static PTM55007
Coefficient of Friction (Dry vs Steel) Dynamic PTM55007 0.35
Maximum Static Bearing Load (P) PTM55007   psi
Maximum Unlubricated No Load Bearing Velocity (V) PTM55007   ft/minute
Maximum Limiting PV (Unlubricated) PTM55007 12,000 psi x ft/min.
Wear Factor “K” x 10-10 PTM55010 35 Cubic in.-min/ft.lbs.hr
Sand Wheel Wear/Abrasion Test     UHMW=100
Minimum Mating Surface Hardness     Rockwell (Brinnell)
Coefficient of Linear Thermal Expansion E-831(TMA) 1.7 in/in/°F x 10-5
Coefficient of Thermal Expansion // to Laminates E-831(TMA)   in/in/°F x 10-5
Coefficient of Thermal Expansion I to Laminates E-831(TMA)   in/in/°F x 10-5
Softening Point     °F
Heat Deflection Temperature 264 psi D648 532 °F
Embrittlement Temperature     °F Min.
Continuous Service Temperature in Air   500 °F Max.
Short Term Service Temperature     °F Max.
Tg-Glass Transition (Amorphous) D3418 527 °F
Melting Point (Crystalline) Peak D3418 N/A °F
Thermal Conductivity F433 1.80 BTU-in/(hr/ft2°F)
Dielectric Strength Short Term D149 580 Volts/mil
Volume Resistivity D257   ohm/cm
Surface Resistivity D257 >1013 ohm/cm
Dielectric Constant, 106 Hz D150 4.2
Dissipation Factor, 106 Hz D150 0.026
Flammability @ 3.1mm(1/8 in.) UL94 UL94 V-O
Arc Resistance     seconds
Water Absorption, Immersion 24 Hours D570 (2) 0.4 %
Water Absorption, Immersion Saturation D570 (2) 1.7 %
Machinability Rating   5 1=easy, 10=difficult
Rod Diameter Availability (Off the Shelf)   .093-2.0 inches
Sheet Thickness Availability (Off the Shelf)   .187-1.0 inches
