Chemical Resistant Plastic PTFE Seat For Ball Valve Gasket

Chemical Resistant Plastic PTFE Seat For Ball Valve Gasket

  • High Light

    Chemical Resistant Plastic PTFE Seat

    ,

    Chemical Resistant PTFE Ball Valve Seats

    ,

    Ball Valve Seats Custom PTFE Parts

  • Product Name
    PTFE Ball Valve Seats, Compression Moulding
  • Material
    Virgin PTFE Natural
  • Supply Type
    OEM Service,
  • Application
    Ball Valve Seats, Bushings
  • Feature
    Sample, Small Order, Higher Cost Performance
  • Certificate
    ISO 9001,RoHS,REACH,UL
  • Shipping
    Support Express -Sea Freight
  • Place Of Origin
    Kunshan,China
  • Place of Origin
    China
  • Brand Name
    DEHAO
  • Certification
    ISO 9001
  • Model Number
    PTFE
  • Minimum Order Quantity
    2000 pcs
  • Packaging Details
    PE bag in Carton
  • Delivery Time
    10 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10KK pcs per month

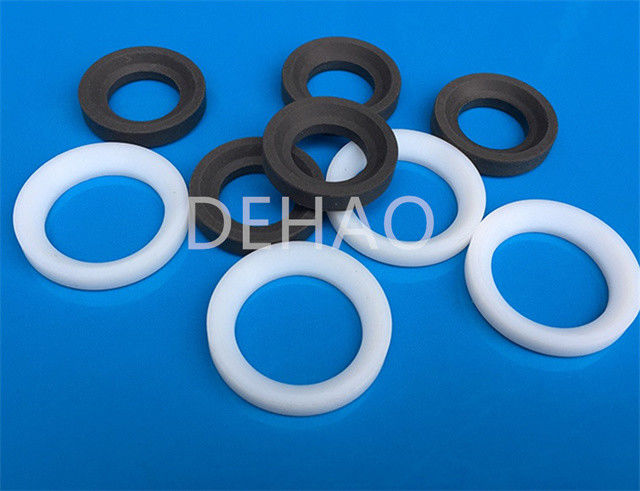

Chemical Resistant Plastic PTFE Seat For Ball Valve Gasket

Factory direct sale Chemical resistant Low price plastic PTFE seat for ball valve gasket

1. Description:

PolyTetraFluoroEthylene is a fluorocarbon-based polymer and is commonly abbreviated PTFE.

PTFE material has excellent resistance for all chemical corrosion. Its friction coefficient is the lowest in plastics.Temperature changes do not affect its electrical insulation property. So PTFE often be called "plastic king". PTFE is suitable for making corrosion resistant parts, wear parts, seal, insulation parts and medical equipment parts.

PTFE's mechanical properties are low compared to other plastics but its mechanical properties can be enhanced by adding fillers such as glass fibers, carbon, graphite, molybdenum disulphide, and bronze.

For different material valve seat ring, we supply OEM service. Please Contact Us for Further Details

Chemical Resistant Plastic PTFE Seat For Ball Valve Gasket 0



character PTFE FEP PFA PVDF
specific gracity 2.13-2.22 2.12-2.17 2.12-2.17 1.76-1.78
melting point(℃) 327 270 302-310 173-175
maximum continous user temperature(℃) 260 200 260 150
tensile strength(mpa) 20-45 19-22 27-35 39-59
coefficient of elongation(%) 200-450 250-330 280-400 300-450
dielectric constant
10^3HZ
10^6HZ

2.1

2.1

2.1

2.1

2.1

2.1

7.72

6.43

volume resistance(Ω-CM) >10^18 >10^18 >10^18 >10^14
dielectric breakdown strength
v/mil
480 500-600 500 260


2. About us:



Welcome to DEHAO! established in 2006, DEHAO is a premier supplier of high precision plastic components and parts to global corporations serving the communication, aerospace, valve seal, industrial, healthcare, and food machine markets. DEHAO has earned the reputation as a premium brand known for exceptional quality, consistency and innovation. We pride ourselves on being able to offer the latest technologies in plastic machining. At DEHAO, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.Product description: 1. High surface finishing 2. Precision in dimension control: â± 0.01mm 3. Full inspection 4. Short lead time



Why choosing us? quick response we can send our best offer with all the details in 1 working day specicial processing we are equipped with full series of advanced machining equipment, experienced technology team, we are able to solve the complex processing problems for you. Cost time control no matter it is sample or mass production, we have the corresponding ways to minimize the cost, to expedite the delivery quality control quality is our life. Our strict quality control system can meet the different requirement in the industry like medical, automobile, telecommunication, sealing. Etc our raw material including: ptfe peek tpx pei(ultem) pet-p pa66 pa6 pctfe pps ppo pom pfa pvdf pai pi(vespel sp-1). Etc



The Materials DEHAO Machines:

ABS PC PVC PE HDPE UHMWPE
PMMA PP PPE PPO Nylon PA66
POM PET PEI PSU PPSU PVDF
PTFE PFA PCTFE ETFE ECTFE PPS
PEEK PAI PI PBI Acetal Noryl
Rexolite Delrin Rulon Duratron TECAPEEK Torlon
Kel-F Ultem Vespel TPX


Q: Are you trading company or manufacturer?
A: We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS, Food grade.

Q: Can you provide free samples?
A: Sorry, Free samples are not available for the custom parts. But after you place the order, samples cost would be return. Which is "FREE" in some way.

Q: I have a drawing, can you produce?
A: First, please send your drawing to our sales representative, they will forward all the information to our engineer and evaluate our capacity, a detail proposal will be reply with 24 hours.

Q: I have a PTFE sample but don't have drawing, what can i do?
A: In this situation, firstly please send us some photos of your sample, we will evaluate. If our factory can produce, then secondly we will ask sample from you, the Draftsman will make drawings according your sample, PS: Make sure your sample is new and unused.

Q: What are you usual terms of payment?
A: Payment welcome T/T, West Union and Paypal.

Q: What is your available tolerance?
A: Generally, tolerance is based on the design and material, we are now able to reach +/-0.001(inch) for certain parts.

Q: What is your lead time?
A: 7-15 days for normal order, we can achieve 1 week delivery for urgently order.

Q: What document will be offer along with the goods?
A: Document will be offer based on your requirement, like inspection report, packing list, material certification, date sheet, MSDS, COC and so on.

Q: What guarantee do you offer?
A: Life-long technology support, and 60 days return policy(Should make sure all the parts are new and unused).

Q: Who will offer the after-sales service?
A: Your sales representative will in charge of after-sales service, plz contact them if you have any questions.
