PEI Ultem Test Socket Semiconductor Precision CNC Mockup ULTEM 1000

PEI Ultem Test Socket Semiconductor Precision CNC Mockup ULTEM 1000

  • High Light

    PEI Ultem CNC Machining Plastic Parts

    ,

    Semiconductor CNC Mockup

    ,

    ULTEM 1000 CNC Mockup

  • Material
    Ultem
  • Color
    Transparent Amber
  • Application
    SMP SMPM 3.5 2.92mm 1.8mm RF Connector
  • Certificate
    ISO 9001,RoHS,REACH,UL
  • Supply Type
    OEM Service
  • Feature
    Sample, Small Order, Higher Cost Performance
  • Shipping
    Support Express -Sea Freight
  • Place Of Origin
    Kunshan,Suzhou
  • Place of Origin
    China
  • Brand Name
    DeHao
  • Certification
    ISO 9001
  • Model Number
    Ultem
  • Minimum Order Quantity
    2000 Piece
  • Packaging Details
    PE bag in Cartons
  • Delivery Time
    10 working days
  • Payment Terms
    L/C, T/T

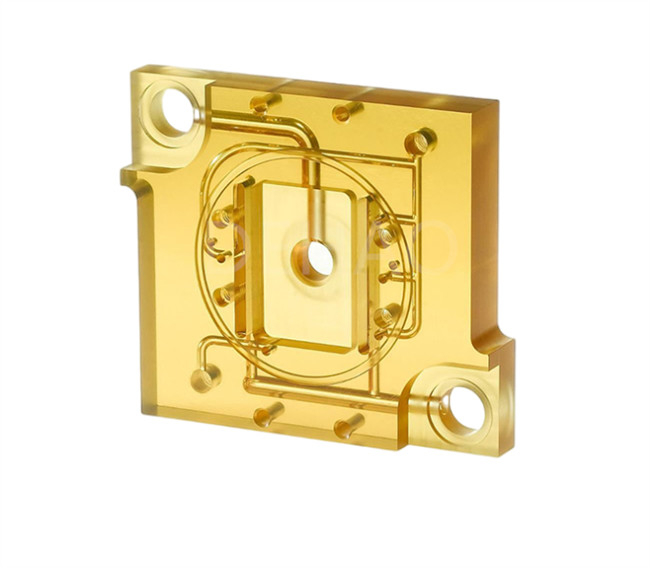

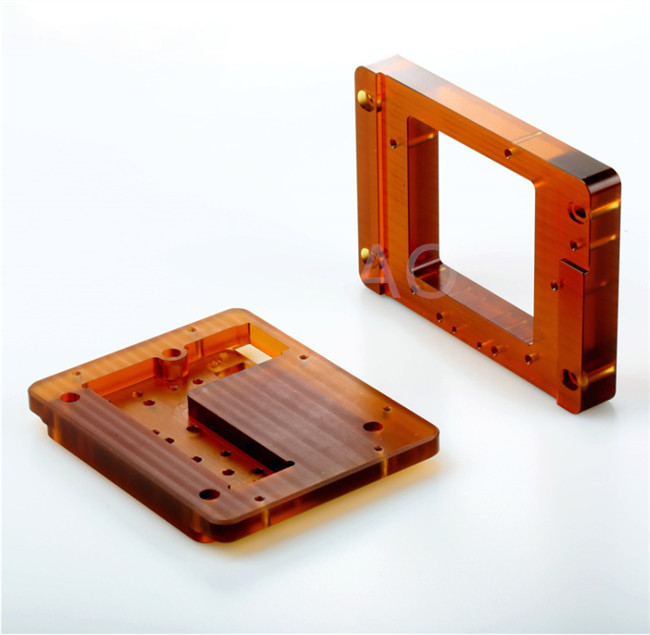

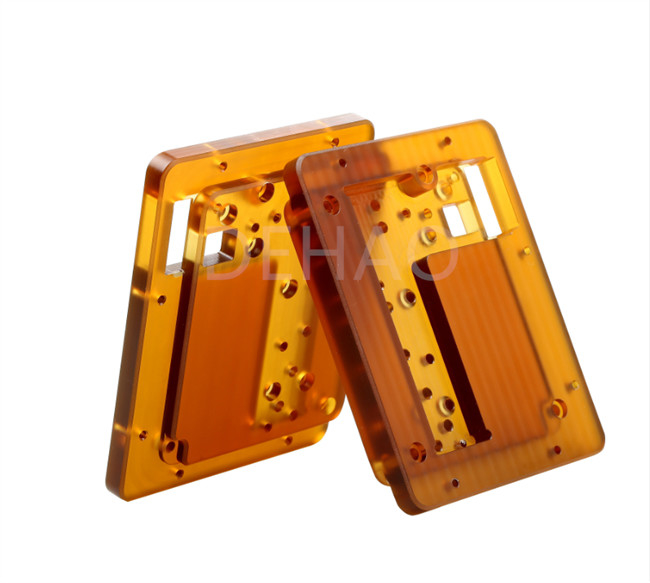

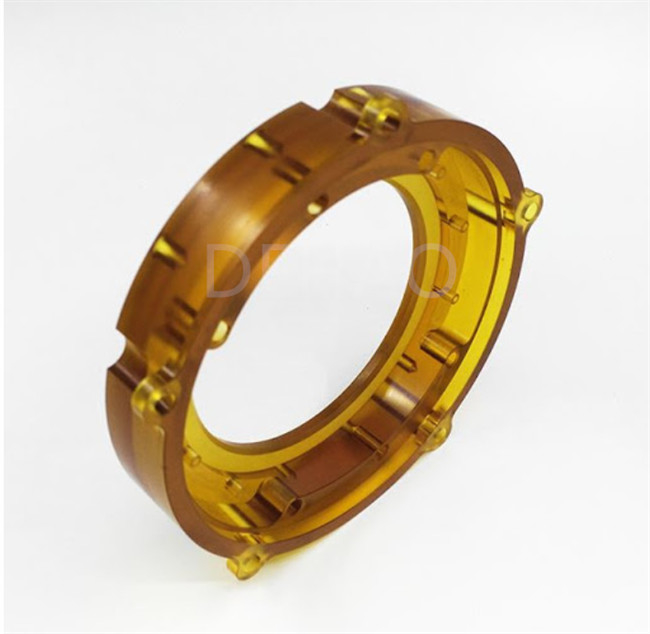

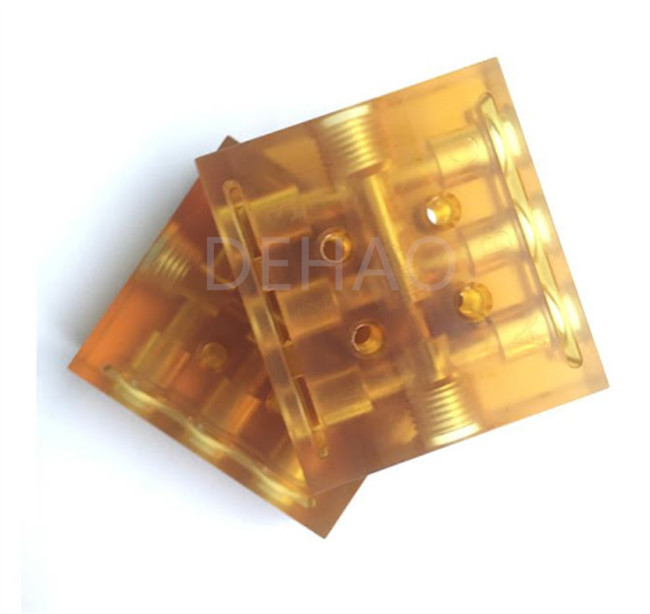

PEI Ultem Test Socket Semiconductor Precision CNC Mockup ULTEM 1000

PEI Ultem test Socket Semiconductor Precision CNC Machining Mockup ULTEM1000 Plastic Parts



CNC Machining Pei Ultem 2.92mm RF Connector High Stiffness High Tempertuare



1. Description:

Ultem® is the ideal thermoplastic choice for demanding, high-heat applications. This polyetherimide material can withstand continuous operating temperatures of 340° F while maintaining strength and rigidity. It is easily fabricated and bonded and offers excellent chemical resistance and high dielectric strength.

Ultem® is the high-performance polyetherimide material of choice for many aerospace, aircraft, medical and pharmaceutical applications, including medical components. It offers exceptional mechanical properties and exhibits natural flame resistance and extremely low smoke generation.

2. Application

  • Heat, solvent and flame resistant

  • High dielectric strength and stability

  • Excellent mechanical properties

  • Rigid and strong

  • Exceptional resistance to environmental forces

3. Properties

  • Jet engine components

  • Microwaves

  • Medical components

  • Manifolds

  • Electronic/electrical insulators













TYPICAL PROPERTIES of ULTEM®
ASTM or UL test Property Ultem® 1000
unfilled
Ultem® 2300
30% glass
PHYSICAL
D792 Density (lb/in³)
(g/cm³)
0.046
1.28
0.055
1.51
D570 Water Absorption, 24 hrs (%) 0.25 0.18
MECHANICAL
D638 Tensile Strength (psi) 16,500 17,000
D638 Tensile Modulus (psi) 475,000 800,000
D638 Tensile Elongation at Break (%) 80 3.0
D790 Flexural Strength (psi) 20,000 30,000
D790 Flexural Modulus (psi) 500,000 900,000
D695 Compressive Strength (psi) 22,000 32,000
D695 Compressive Modulus (psi) 480,000 620,000
D785 Hardness, Rockwell M112 / R125 M114 / R127
D256 IZOD Notched Impact (ft-lb/in) 0.5 1.0
THERMAL
D696 Coefficient of Linear Thermal Expansion
(x 10-5 in./in./°F)
3.1 1.1
D648 Heat Deflection Temp (°F / °C)
at 264 psi

392 / 200

410 / 210
D3418 Glass Transition Temp (°F / °C) 419 / 215 419 / 215
- Max Operating Temp (°F / °C) 340 / 171 340 / 171
C177 Thermal Conductivity
(BTU-in/ft²-hr-°F)
(x 10-4 cal/cm-sec-°C)

0.90
3.10

0.90
3.10
UL94 Flammability Rating V-O V-O
ELECTRICAL
D149 Dielectric Strength (V/mil) short time, 1/8" thick 830 770
D150 Dielectric Constant at 1 MHz 3.15 3.70
D150 Dissipation Factor at 1 MHz 0.0013 0.0015
D257 Volume Resistivity (ohm-cm)at 50% RH 6.7 x 1017 3.0 x 1016




3. About us:

Welcome to DEHAO! Established in 2006, DEHAO is a premier supplier of high precision plastic components and parts to global corporations serving the communication, aerospace, valve seal, industrial, healthcare, and food machine markets. DEHAO has earned the reputation as a premium brand known for exceptional quality, consistency and innovation. We pride ourselves on being able to offer the latest technologies in plastic machining. At DEHAO, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

PTFE electrical  Insulator PTFE pipe sleeve 0



4. Why choosing us?



Quick response.We can send our best offer with all the details in 1 working day specicial processing we are equipped with full series of advanced machining equipment, experienced technology team, we are able to solve the complex processing problems for you. Cost time control no matter it is sample or mass production, we have the corresponding ways to minimize the cost, to expedite the delivery quality control quality is our life. Our strict quality control system can meet the different requirement in the industry like medical, automobile, telecommunication, sealing. Etc our raw material including: ptfe peek tpx pei(ultem) pet-p pa66 pa6 pctfe pps ppo pom pfa pvdf pai pi(vespel sp-1). Etc



The Materials DEHAO Machines:

The Materials DEHAO Machines:
ABS PC PVC PE HDPE UHMWPE
PMMA PP PPE PPO Nylon PA66
POM PET PEI PSU PPSU PVDF
PTFE PFA PCTFE ETFE ECTFE PPS
PEEK PAI PI PBI Acetal Noryl
Rexolite Delrin Rulon Duratron TECAPEEK Torlon
Kel-F Ultem Vespel TPX



Q: Are you trading company or manufacturer?
A: We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS, Food grade.

Q: Can you provide free samples?
A: Sorry, Free samples are not available for the custom parts. But after you place the order, samples cost would be return. Which is "FREE" in some way.

Q: I have a drawing, can you produce?
A: First, please send your drawing to our sales representative, they will forward all the information to our engineer and evaluate our capacity, a detail proposal will be reply with 24 hours.

Q: I have a PTFE sample but don't have drawing, what can i do?
A: In this situation, firstly please send us some photos of your sample, we will evaluate. If our factory can produce, then secondly we will ask sample from you, the Draftsman will make drawings according your sample, PS: Make sure your sample is new and unused.

Q: What are you usual terms of payment?
A: Payment welcome T/T, West Union and Paypal.

Q: What is your available tolerance?
A: Generally, tolerance is based on the design and material, we are now able to reach +/-0.001(inch) for certain parts.

Q: What is your lead time?
A: 7-15 days for normal order, we can achieve 1 week delivery for urgently order.

Q: What document will be offer along with the goods?
A: Document will be offer based on your requirement, like inspection report, packing list, material certification, date sheet, MSDS, COC and so on.

Q: What guarantee do you offer?
A: Life-long technology support, and 60 days return policy(Should make sure all the parts are new and unused).

Q: Who will offer the after-sales service?
A: Your sales representative will in charge of after-sales service, plz contact them if you have any questions.
