PPO Noryl EN265 Mini RF Insulator 60G 100G OEM Service

PPO Noryl EN265 Mini RF Insulator 60G 100G OEM Service

  • High Light

    PPO mini RF insulator

    ,

    Noryl EN265 mini RF insulator

    ,

    PPO rf connector insulator

  • Product Name
    PTFE Insulator, PTFE Dielectric, PTFE Parts
  • Material
    PPO Noryl® EN265 (Black)
  • Application
    RF Connector For 4G 5G
  • Certificate
    ISO 9001,RoHS,REACH,UL
  • Supply Type
    OEM Service,
  • Feature
    Small Order, Higher Cost Performance
  • Place of Origin
    China
  • Brand Name
    DEHAO
  • Certification
    ISO 9001
  • Minimum Order Quantity
    2000 pcs
  • Packaging Details
    PE bag in Carton
  • Delivery Time
    10 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10KK pcs per month

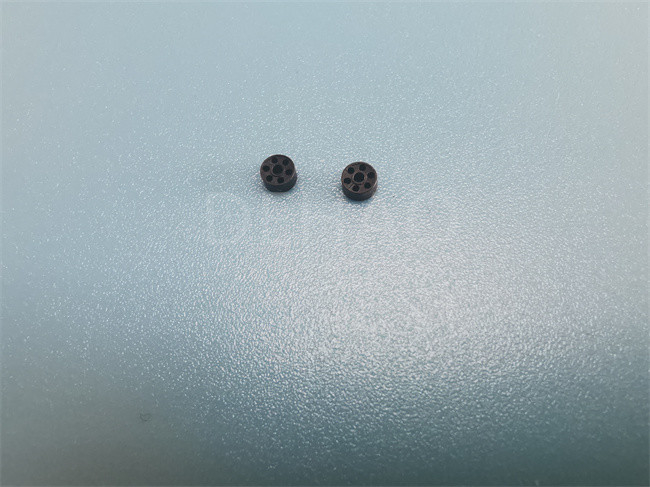

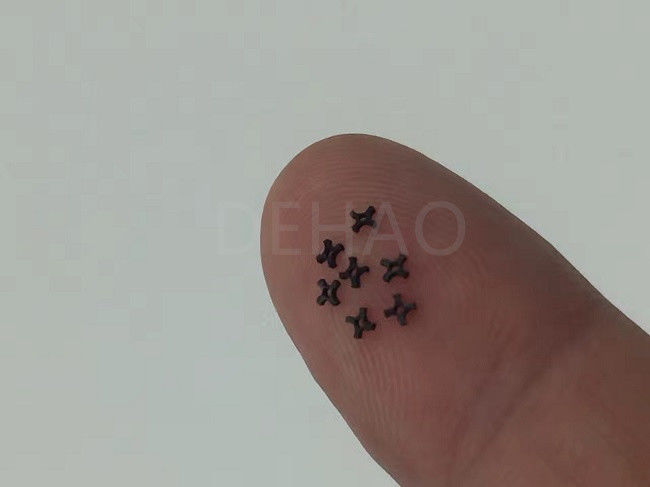

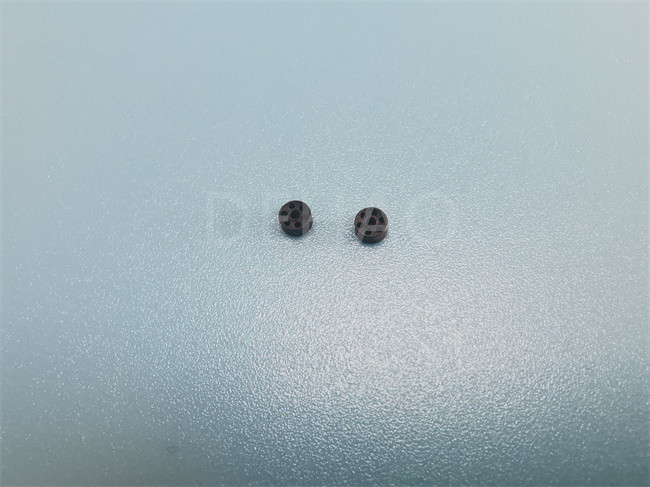

PPO Noryl EN265 Mini RF Insulator 60G 100G OEM Service

PPO PPE Noryl EN265 high precision mini insulator of RF Connector Frequency 60G 100G

PPO PPE insulator Noryl® EN265 (Black) automobile connector machined high frequency insulator connectors SMP​

1. Description:

Special properties

  • Heat resistant to 265° F
  • Low moisture absorbtion
  • Cost effective solution
  • NOT resistant to petroleum products

Noryl's overall physical properties are excellent: low moisture absorption and heat resistance of 265° F at 264 psi combine to make Noryl a truly high performance material at very cost effective rates. Parts are easily machined to fill a variety of needs. Used in appliances, liquid handling equipment, and numerous other applications. Noryl is attacked by petroleum products, so knowing the environment which the Noryl part will be exposed to is vital.





KUNSHAN DE HAO ELECTRONIC TECHNOLOGY CO.,LTD
PROPERTIES OF RF INSULATORS
Property Experimental methods and conditions PPO
PHYSICAL
Specific Gravity(g/cm3) D792 1.08
Water Absorption(%) D570/24H 0.07
Molding Shrinkage(cm/cm)   0.3-0.8
THERMAL
Thermal Conductivity C177
Coefficient of Linear Thermal Expansion(1/℃) D696(23-60℃) 3.3*10-5
Melting Point(℃) D4591 268
Heat Deflection Temp.(℃) D648 at 1.8MPa 129
Max Operating Temp.(℃) No load 95
MECHANICAL
Tensile Strength(Mpa) D638/23℃ 66
Elongation(%) D638/23℃ 30
Compressive Strength(Mpa) D695/1%,25℃
Tensile Spring Rate(Mpa) D638/23℃ 2413
Flexural Spring Rate(Mpa) D790/23℃ 2482
Impact Strength(J/M) D256/23℃ IZOD 266
Hardness
ELECTRICAL
Dielectric Constant D150/60Hz 2.7
D150/106Hz
Dissipation Factor D150/60Hz 1*10-3
D150/106Hz
Dielectric Strength(MV/m) D149,3.2mm 19.685
Volume Resistivity(Ω-cm) D257 1*1017
OTHERS
Flame-Retardant UL94 V-0



The Materials DEHAO Machines:
ABS PC PVC PE HDPE UHMWPE
PMMA PP PPE PPO Nylon PA66
POM PET PEI PSU PPSU PVDF
PTFE PFA PCTFE ETFE ECTFE PPS
PEEK PAI PI PBI Acetal Noryl
Rexolite Delrin Rulon Duratron TECAPEEK Torlon
Kel-F Ultem Vespel TPX



2. About us:



Welcome to DEHAO! established in 2006, DEHAO is a premier supplier of high precision plastic components and parts to global corporations serving the communication, aerospace, valve seal, industrial, healthcare, and food machine markets. DEHAO has earned the reputation as a premium brand known for exceptional quality, consistency and innovation. We pride ourselves on being able to offer the latest technologies in plastic machining. At DEHAO, we are committed to providing the highest level of customer service, competitive pricing, speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.Product description: 1. High surface finishing 2. Precision in dimension control: â± 0.01mm 3. Full inspection 4. Short lead time

Why choosing us? quick response we can send our best offer with all the details in 1 working day specicial processing we are equipped with full series of advanced machining equipment, experienced technology team, we are able to solve the complex processing problems for you. Cost time control no matter it is sample or mass production, we have the corresponding ways to minimize the cost, to expedite the delivery quality control quality is our life. Our strict quality control system can meet the different requirement in the industry like medical, automobile, telecommunication, sealing. Etc our raw material including: ptfe peek tpx pei(ultem) pet-p pa66 pa6 pctfe pps ppo pom pfa pvdf pai pi(vespel sp-1). Etc

PPO Noryl EN265 Mini RF Insulator 60G 100G OEM Service 0



Q: Are you trading company or manufacturer?
A: We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS, Food grade.

Q: Can you provide free samples?
A: Sorry, Free samples are not available for the custom parts. But after you place the order, samples cost would be return. Which is "FREE" in some way.

Q: I have a drawing, can you produce?
A: First, please send your drawing to our sales representative, they will forward all the information to our engineer and evaluate our capacity, a detail proposal will be reply with 24 hours.

Q: I have a PTFE sample but don't have drawing, what can i do?
A: In this situation, firstly please send us some photos of your sample, we will evaluate. If our factory can produce, then secondly we will ask sample from you, the Draftsman will make drawings according your sample, PS: Make sure your sample is new and unused.

Q: What are you usual terms of payment?
A: Payment welcome T/T, West Union and Paypal.

Q: What is your available tolerance?
A: Generally, tolerance is based on the design and material, we are now able to reach +/-0.001(inch) for certain parts.

Q: What is your lead time?
A: 7-15 days for normal order, we can achieve 1 week delivery for urgently order.

Q: What document will be offer along with the goods?
A: Document will be offer based on your requirement, like inspection report, packing list, material certification, date sheet, MSDS, COC and so on.

Q: What guarantee do you offer?
A: Life-long technology support, and 60 days return policy(Should make sure all the parts are new and unused).

Q: Who will offer the after-sales service?
A: Your sales representative will in charge of after-sales service, plz contact them if you have any questions.
